Analogue Dial Gauges
Product Code : JA-MI-4920

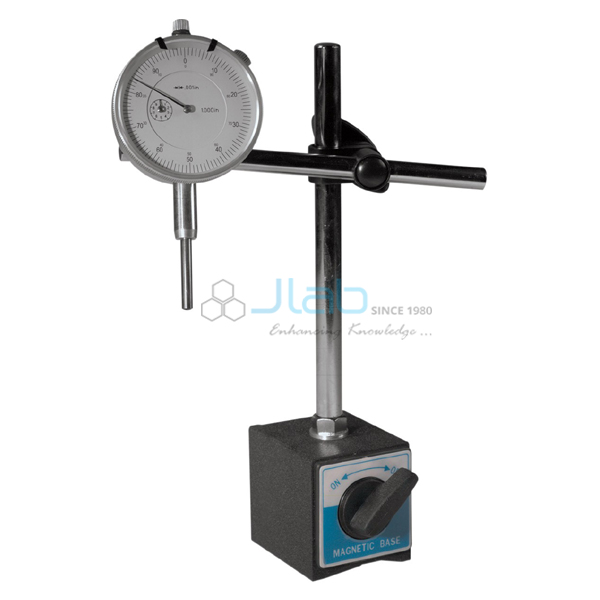

The Analogue Dial Gauges (SKU JA-MI-4920) are metric analogue dial gauge indicators of 56 mm nominal size, reading 0.01 mm per division over the specified travel. The gauge has a ball point and a lug on the back for mounting on a stand or test frame. Dial gauges measure small displacements, deflections and run-out, and are read directly from the dial. They are supplied by JaincoLab for structures, strength-of-materials, metrology and workshop laboratories, with the travel confirmed on the quotation.
Specifications
The dial gauge is a metric model of 56 mm nominal size reading 0.01 mm per division, with ball point and lug on back; the travel is not stated in the product data and is confirmed on the quotation.
| Product | Analogue Dial Gauges |
| SKU | JA-MI-4920 |
| Type | Metric analogue dial indicator |
| Nominal size | 56 mm |
| Reading | 0.01 mm per division |
| Contact point | Ball point |
| Mounting | Lug on back |
| Optional | Dial gauge stand with magnetic base; stand with large magnetic base; flat anvil |
Uses of the analogue dial gauge
A dial gauge shows small movements directly to 0.01 mm, which makes it the standard read-out for beam deflection and similar experiments.
- Measuring beam and frame deflections in structures laboratories
- Strength-of-materials experiments on springs, beams and columns
- Checking run-out and flatness in metrology and workshop practice
- Displacement measurement in engineering project work
Scope of supply and ordering
The listing covers the analogue dial gauge. Stands with magnetic base and a flat anvil are optional extras. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of gauges and the delivery destination. Single gauges, class sets and bulk quantities for engineering laboratories and tenders are supplied.
Frequently asked questions
What does it read to?
0.01 mm per division.
What size is the dial?
56 mm nominal size.
How is it mounted?
By the lug on the back; dial gauge stands with magnetic base are available as optional extras.
Related products
- Digital Dial Gauges
- HI-Load 5000 (5kN Loading Device)
- 2 Channel Digital Strain Meter
- Vernier Caliper Stainless Steel
This gauge is listed in the JaincoLab measuring instruments range.
Request a quote
To order the Analogue Dial Gauges, send the travel, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-MI-4920. For tender or project supply, see our tenders page.
