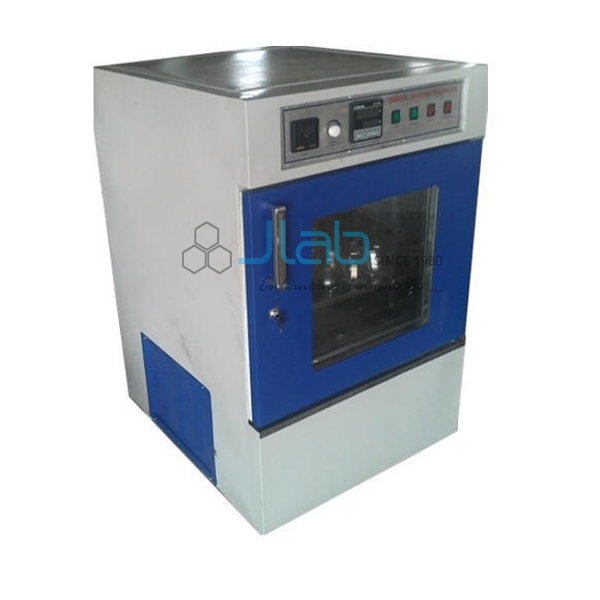

Orbital Shaking Incubator
Product Code : JA-ELA-5502
The Orbital Shaking Incubator (SKU JA-ELA-5502) is a triple-walled orbital shaking incubator cum BOD incubator made by JaincoLab. It combines controlled incubation with an orbital shaking platform driven by a geared motor, for procedures such as tissue culture, fermentation studies, enzyme reactions and growth studies. The temperature is set between 5 °C and 60 °C on a dual-display microprocessor PID controller, and the shaker speed can be varied from 30 to 250 rpm.
Specifications
Construction, control and the listed flask capacities are shown below.
| Product | Orbital Shaking Incubator |
| SKU | JA-ELA-5502 |
| Construction | Triple walled; outer MS sheet painted or powder coated; inner thick stainless steel |
| Insulation | High-grade glass wool |
| Temperature range | 5 °C to 60 °C |
| Controller | Dual-display microprocessor PID digital indicator-cum-controller, accuracy 0.5 °C |
| Air circulation | Fan for uniform temperature |
| Shaker speed | 30 to 250 rpm, geared motor, digital rpm meter |
| Timer | Digital, up to 999 min |
| Shaker tray | Stainless steel with lotus-type flask clamps |
| Flask capacity (as listed) | 16 flasks of 50 ml; 25 flasks of 250 ml; 36 flasks of 100 ml |
| Viewing | Plexiglass window |
| Lighting | Fluorescent tube, door or panel operated |
| Optional, extra cost | Timer 0-24 h; automatic voltage stabiliser 3 kVA |
Applications of the orbital shaking incubator
- Tissue culture
- Fermentation studies
- Enzyme reactions
- Growth studies
Scope of supply and ordering
The incubator is supplied with its shaker tray and flask clamps; the tray configuration, optional timer or voltage stabiliser, quantity and packing are confirmed on the quotation.
Frequently asked questions
What temperature range does it cover?
5 °C to 60 °C, controlled by a dual-display PID controller to 0.5 °C.
How fast does the shaker run?
Its speed is variable from 30 to 250 rpm and is shown on a digital rpm meter.
Can samples be seen during a run?
Yes, through the plexiglass window, without disturbing the inside temperature.
