Wheatstone Bridge Two Gap
Product Code : JA-EE-7587

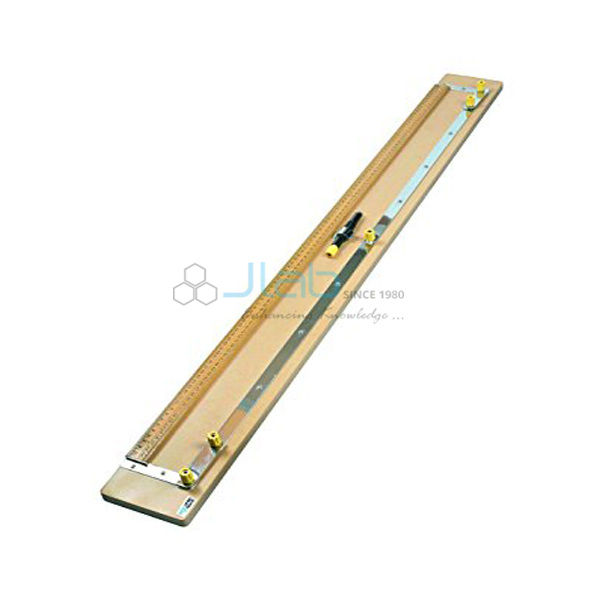

The Wheatstone Bridge Two Gap (SKU JA-EE-7587) is a two gap metre bridge: a known resistance goes in one gap, the resistance under test in the other, and the balance point on the wire gives the unknown value. Its 24 SWG constantan wire runs along the top of a metre scale in mm and cm, the heavily plated brass strips sit on a polished hardwood base, and the terminals have 4 mm sockets. JaincoLab supplies this two gap meter bridge with a jockey for school and college physics laboratories.
Specifications
The two gap bridge carries a 24 SWG constantan wire stretched along a metre scale in mm and cm, broad heavily plated brass strips mounted on a polished hardwood base and 4 mm socket terminals; it measures 1130 × 80 × 50 mm and comes with a jockey.
| Product | Wheatstone Bridge Two Gap |
| SKU | JA-EE-7587 |
| Configuration | Two gaps |
| Bridge wire | 24 SWG constantan |
| Scale | Metre scale graduated in mm and cm |
| Strips | Broad, heavily plated brass |
| Base | Polished hardwood |
| Terminals | 4 mm sockets |
| Accessory | Jockey supplied |
| Size | 1130 × 80 × 50 mm |
Practicals with the two gap meter bridge
With a resistance box in one gap and the test resistance in the other, students move the jockey along the constantan wire to the null point and use the two balancing lengths to calculate the unknown resistance; interchanging the two resistances and averaging the results reduces end errors.
- Resistance of a given wire and the resistivity of its material
- Series and parallel combinations of resistances
- Comparison of two resistances by interchanging them between the gaps
- Variation of the resistance of a coil with temperature
- Class 12 physics practical examinations and first-year college current electricity labs
Scope of supply and ordering
Supplied as the two gap Wheatstone bridge described above, with a jockey. A galvanometer, resistance box, cell, plug key and connecting leads are separate items and can be quoted together to complete the set-up. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies meter bridges for individual laboratories, for colleges equipping several practical benches, and for bulk school and tender orders, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How many gaps does this bridge have?
It has two gaps, one for a known resistance and one for the resistance being measured.
What bridge wire and scale does it use?
A 24 SWG constantan wire is stretched along the top of a metre scale graduated in mm and cm.
How large is the Wheatstone Bridge Two Gap?
It measures 1130 × 80 × 50 mm, on a polished hardwood base with heavily plated brass strips.
Is the jockey supplied with the bridge?
Yes. A jockey is supplied, and the Jockey with insulated handle is also listed separately.
