Water Bath 6 Hole
Product Code : JA-MI-8767

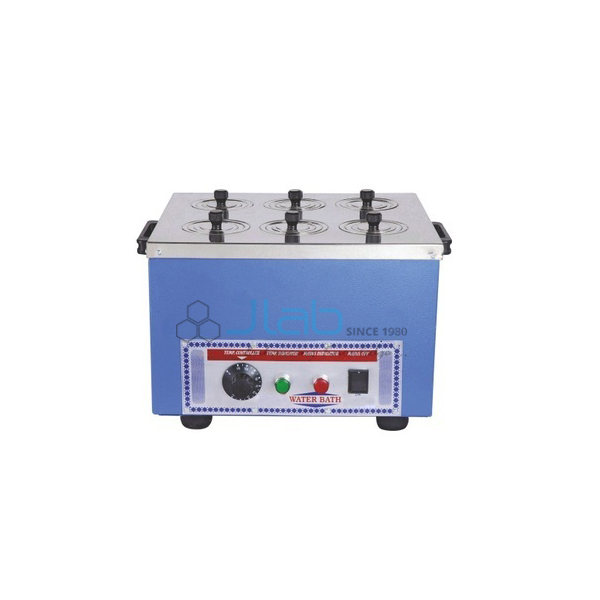

The Water Bath 6 Hole (SKU JA-MI-8767) is a rectangular 6 hole water bath with a stainless steel inner reservoir, for heating flasks, beakers and tubes at controlled temperatures up to 100°C. The outer body is mild steel with glass wool insulation between the walls. The lid has one 12.5 cm hole and six 7.5 cm holes fitted with stainless steel concentric rings and lids, so that vessels of different sizes can sit in the bath. Temperature is set by a capillary thermostat. It is supplied by JaincoLab for school, college and testing laboratories.
Specifications
The bath has a 30 x 25 x 12 cm stainless steel chamber, one 12.5 cm and six 7.5 cm holes with stainless steel concentric rings and lids, and heats from ambient to 100°C under capillary thermostat control on 230 V AC single phase.
| Product | Water Bath 6 Hole |
| SKU | JA-MI-8767 |
| Construction | Rectangular, double walled; stainless steel inner reservoir; mild steel outer body |
| Insulation | Glass wool |
| Lid holes | One of 12.5 cm diameter; six of 7.5 cm diameter |
| Rings | Stainless steel concentric rings with lids on the holes; stainless steel top plate |
| Temperature range | Ambient to 100°C |
| Control | Capillary thermostat |
| Chamber size | 30 x 25 x 12 cm |
| Power supply | 230 V AC, single phase |
| Thermometers | Available at extra cost |
Uses of the 6 hole water bath
A multi-hole water bath heats several vessels gently and evenly at once, which suits routine heating and evaporation in practical classes.
- Heating test tubes, flasks and beakers in chemistry practicals
- Evaporating solutions over a water bath
- Warming reagents and media in biology and microbiology laboratories
- General controlled-temperature work up to 100°C
Scope of supply and ordering
The listing covers the water bath with lid, concentric rings and capillary thermostat. Thermometers are available at extra cost. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. Single units and bulk quantities for school and college laboratories and tenders are supplied.
Frequently asked questions
How many holes does the lid have?
One hole of 12.5 cm and six holes of 7.5 cm diameter, with concentric rings and lids.
What temperature range does it cover?
Ambient to 100°C, controlled by a capillary thermostat.
What is the chamber size?
30 x 25 x 12 cm, with a stainless steel inner reservoir.
Is a thermometer included?
Thermometers are available at extra cost.
Related products
This water bath is listed in the JaincoLab measuring instruments range.
Request a quote
To order the Water Bath 6 Hole, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-MI-8767. Institutions and contractors buying under a tender can also reach us via the tenders page.
