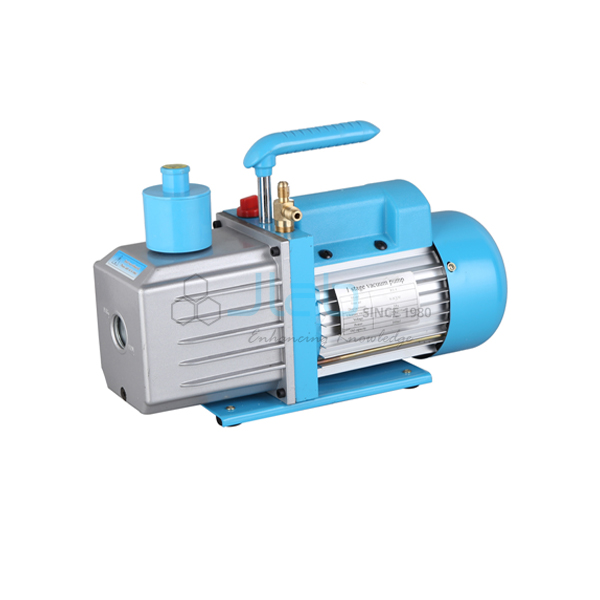

Vacuum Pump
Product Code : JA-PLE-4099
The Vacuum Pump (SKU JA-PLE-4099) is an electrically operated, oil-immersed rotary vane pump for laboratory work that needs a vacuum, supplied complete with base, motor, pulley and belt. This laboratory vacuum pump is made in single-stage or double-stage versions with 0.25, 0.50 or 1.0 HP motors on a 230 V AC single-phase supply. JaincoLab supplies it to school, college and materials-testing laboratories.
Specifications
The pump uses an eccentrically mounted slotted rotor carrying a pair of spring-loaded vanes inside a metal casing, runs on 230 V AC single-phase 50 Hz supply and is offered in 0.25, 0.50 and 1.0 HP sizes as single-stage or double-stage units.
| Product | Vacuum Pump |
| SKU | JA-PLE-4099 |
| Type | Rotary vane, oil immersed |
| Stages | Single or double stage |
| Motor sizes | 0.25, 0.50 and 1.0 HP |
| Power supply | 230 V AC, single phase, 50 Hz |
| Mechanism | Eccentrically mounted slotted rotor in a cylindrical bore; two vanes pressed against the casing wall by a spring |
| Exhaust | Air forced out through an oil-immersed exhaust valve |
| Construction | Pump mechanism contained in a metal case with oil |
| Supplied with | Base, motor, pulley and belt |
Applications of the laboratory vacuum pump
The vacuum pump evacuates vessels and apparatus wherever a laboratory test needs reduced pressure, from physics demonstrations with a bell jar on a pump plate to materials testing, where it removes air voids from bituminous mix before the specific gravity test.
- Evacuating a bell jar on a pump plate for air-pressure and sound-in-vacuum demonstrations
- Specific gravity testing of bituminous mixes by removing air voids
- General laboratory tests that need a vacuum source
Scope of supply and ordering
The listing covers the vacuum pump complete with base, motor, pulley and belt, in the stage and motor size ordered. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and delivery destination. JaincoLab supplies single-laboratory orders, bulk requirements for colleges and testing laboratories, and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which motor sizes are available?
0.25, 0.50 and 1.0 HP, in single-stage or double-stage versions.
What power supply does the pump need?
230 V AC, single phase, 50 Hz.
Is the motor included with the pump?
Yes. The pump is supplied complete with base, motor, pulley and belt.
Related products
See the Physics Lab Equipments range from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Vacuum Pump, send the motor size, number of stages, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
