Tray Dryer
Product Code : JA-LE-2076

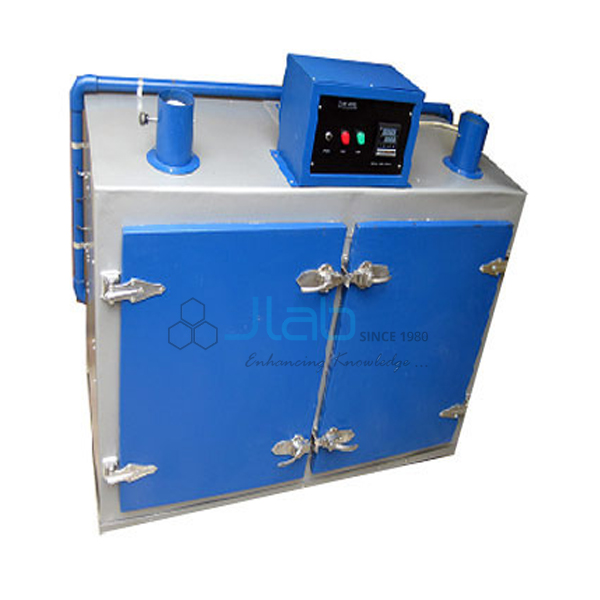

The Tray Dryer (SKU JA-LE-2076) is a double-walled laboratory tray dryer with forced air circulation for drying materials on trays at 50 °C to 250 °C. Its inner and outer chambers are made of thick mild steel or stainless steel sheet with glass wool insulation between the walls, and a thermostat with a dial thermometer controls and shows the temperature. It is listed in 12-tray and 48-tray sizes.
Specifications
Values below are taken from the product data; the chamber material and tray count for an order are confirmed on the quotation.
| Product | Tray Dryer |
| SKU | JA-LE-2076 |
| Construction | Double wall; inner and outer chambers of thick mild steel or stainless steel sheet |
| Finish | Silver paint inside, hammertone outside |
| Insulation | Glass wool between the walls |
| Air circulation | Heavy-duty forced air blowers |
| Door | Mounted on heavy hinges with moulded latch |
| Temperature range | 50 °C to 250 °C |
| Control and display | Thermostat with dial thermometer; digital indicator-cum-controller optional |
| Tray size | 16 x 32 x 1 1/4 inches |
| Capacity | 12 trays or 48 trays |
Applications of the laboratory tray dryer
Forced hot-air circulation over shelves of trays suits batch drying such as:
- Drying powders, granules and wet samples in laboratories and pilot plants
- Removing moisture from materials at a controlled temperature up to 250 °C
Scope of supply and ordering
Each dryer is supplied with the trays for the chosen 12-tray or 48-tray size; chamber material, controller option, packing and lead time are set out on the quotation.
Frequently asked questions
How many trays does the Tray Dryer hold?
It is listed with 12 trays or 48 trays, each 16 x 32 x 1 1/4 inches.
What temperature range does it cover?
50 °C to 250 °C, set by a thermostat and read on a dial thermometer; a digital indicator-cum-controller is available as an option.
Is the Tray Dryer available in stainless steel?
The product data lists the chambers in thick mild steel or stainless steel sheet; the material is confirmed on the quotation.
Related products
The full laboratory equipment range lists related items.
Request a quote
Send an enquiry for the Tray Dryer (SKU JA-LE-2076) with the model, quantity and delivery destination through the JaincoLab contact page. For tender or project supply, see our tenders page.
