Three Wire Suspension Apparatus
Product Code : JA-ELA-5520

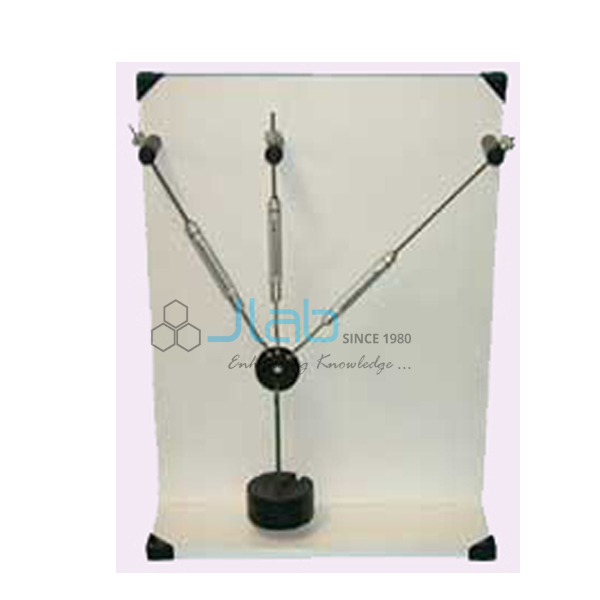

The Three Wire Suspension Apparatus (SKU JA-ELA-5520) is a statics experiment supplied by JaincoLab for studying the vertical equilibrium of two-wire and three-wire suspension systems. A free-standing backboard supports three tensile suspenders that meet at a ring carrying a load hanger. The outer suspenders are at about 30 and 45 degrees to the central vertical one, and a spring balance in each suspender reads its tension. The length of each suspender is set by a threaded rod attached to its spring balance.
Specifications
The backboard, suspenders and measuring arrangement listed are shown below.
| Product | Three Wire Suspension Apparatus |
| SKU | JA-ELA-5520 |
| Frame | Free-standing backboard |
| Suspenders | Three, meeting at a ring with load hanger |
| Angles | Outer suspenders at about 30 and 45 degrees to the central vertical suspender |
| Measurement | Spring balance in each suspender |
| Adjustment | Threaded rod on each spring balance to set the suspender length |
| Documentation | Instruction manual |
Experiments
With two wires the tensions follow from equilibrium alone; adding the central wire makes the system statically indeterminate, so its share of the load depends on how the wires are adjusted.
- Vertical equilibrium of a two-wire suspension
- Vertical equilibrium of a three-wire suspension
- The action of the central vertical redundant force
Scope of supply and ordering
The apparatus is supplied by JaincoLab with its spring balances, load hanger and instruction manual; weights, quantity and packing are confirmed on the quotation.
Frequently asked questions
At what angles are the outer wires set?
About 30 and 45 degrees to the central vertical suspender.
How is the length of each wire adjusted?
By a threaded rod attached to the spring balance in that suspender.
