Thermistor Characteristics Apparatus
Product Code : JA-SCD-1087

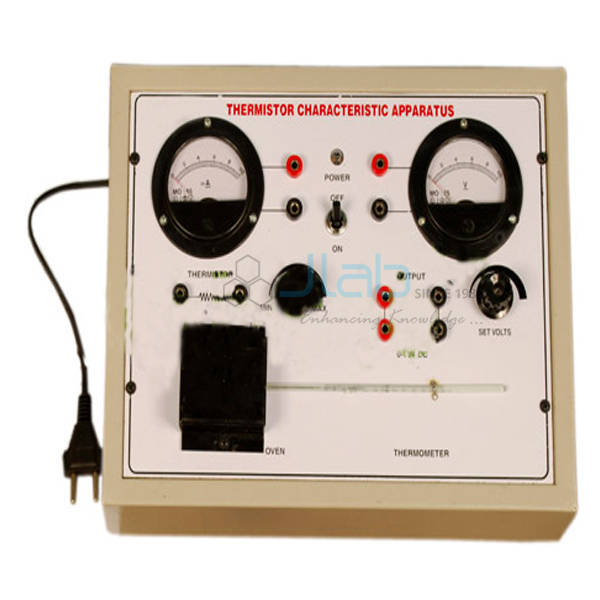

The Thermistor Characteristics Apparatus (SKU JA-SCD-1087) is used to plot how the resistance of a thermistor falls as its temperature rises, the negative temperature coefficient behaviour. One thermistor is placed in an oven with a thermometer, a regulated 0-1 V DC, 1 mA supply and two meters are built in, and the connections of the supplies, meters and thermistor are brought out to terminals.
Specifications
The listing gives these details:
| Product | Thermistor Characteristics Apparatus |
| SKU | JA-SCD-1087 |
| Power supply | Regulated DC, 0-1 V, 1 mA |
| Meters | Two, voltage and current |
| Set-up | One thermistor in an oven, thermometer provided |
| Connections | Supplies, meters and thermistor on terminals |
| Size | 10 x 8 x 5 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the Thermistor Characteristics Apparatus show?
How the resistance of a thermistor changes with temperature (negative temperature coefficient).
How is the thermistor heated?
In an oven, with a thermometer to read the temperature.
