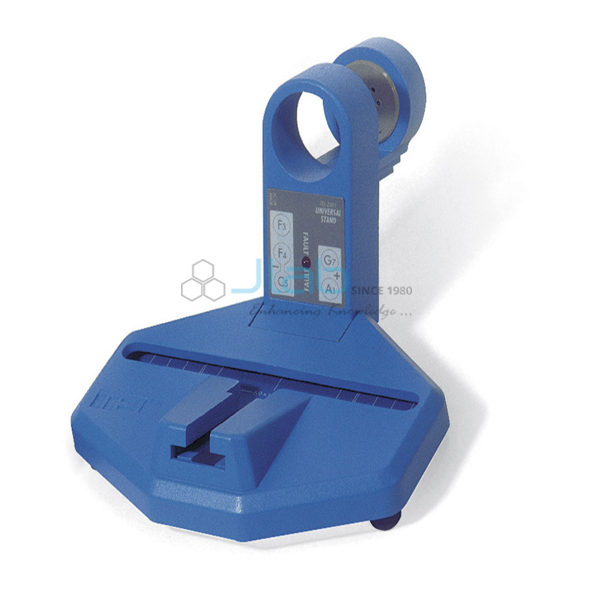

Tel tron Tube Holder S
Product Code : JA-APE-7308
The Tel tron Tube Holder S (SKU JA-APE-7308) is the mounting point for the whole Tel tron Student (S) series of electron tubes and accessories, supplied by JaincoLab. This S-series tube holder carries the tube, positions the Helmholtz Pair of Coils S in slots with metric rulings up to 150 mm apart, takes the auxiliary coil in its stepped front, and houses a fuse that can be replaced easily.
Specifications
The holder combines the tube mount, coil slots with metric rulings for a maximum coil spacing of 150 mm, a stepped front into which the auxiliary coil fits, and an easily replaceable fuse intended to protect the tubes from excessive voltage. Dimensions are confirmed on the quotation.
| Product | Tel tron Tube Holder S |
| SKU | JA-APE-7308 |
| Brand and series | Tel tron, Student (S) series |
| Compatibility | Entire Tel tron S series and its accessories |
| Coil slots | Metric rulings, maximum spacing 150 mm |
| Auxiliary coil | Fits the stepped front side of the holder |
| Fuse | Easily replaceable, intended to protect the tubes from excessive voltage |
Uses of the S-series tube holder
On a student bench the holder is the base for every S-series experiment: the tube is mounted in it, the Helmholtz coils are set at a measured spacing in the ruled slots, and the auxiliary coil can be added at the front when an experiment calls for it.
- Mounting S-series tubes such as the Diode S, Dual Beam Tube S, Electron Diffraction Tube S and Perrin Tube S
- Setting the Helmholtz Pair of Coils S at the Helmholtz spacing or at other measured distances up to 150 mm
- Adding the auxiliary coil at the stepped front of the holder
- Student practicals in B.Sc and engineering physics laboratories
Scope of supply and ordering
The listing covers the Tel tron Tube Holder S. Tubes, the Helmholtz Pair of Coils S, the auxiliary coil and power supplies are separate items. Accessories, spares such as replacement fuses, and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing for the holder are confirmed on each quotation for the quantity and destination. Holders are supplied singly with tube orders, as sets for several student benches, or in bulk for college and tender orders, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which tubes does the Tube Holder S take?
It is the mounting point for the entire Tel tron Student (S) series and related accessories, such as the Helmholtz Coils S and the auxiliary coil.
How far apart can the coils be set?
The coil slots carry metric rulings for accurate adjustment, with a maximum spacing of 150 mm.
Does the holder have a fuse?
Yes. An easily replaceable fuse in the holder is there to protect the tubes from excessive voltage.
Related products
All S-series tubes and coils are listed under atomic physics equipment, within the wider JaincoLab range of physics lab equipment.
Request a quote
For a price on the Tel tron Tube Holder S, send the number of holders and the delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
