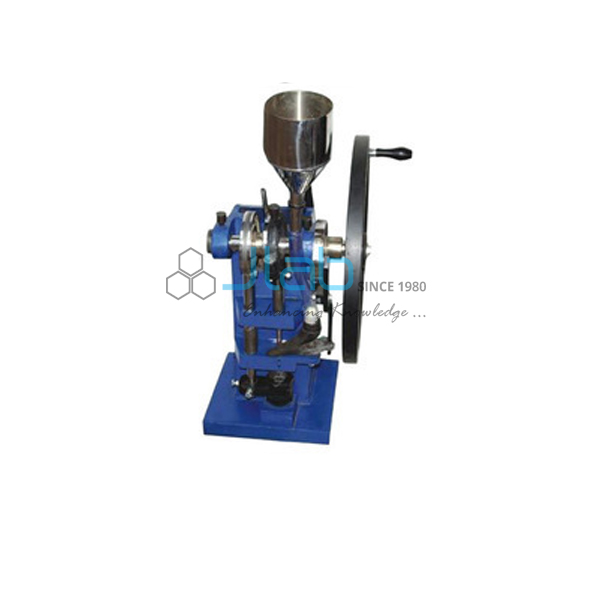

Tablet Making Machine Hand Operated
Product Code : JA-TMMHO-2451
The Tablet Making Machine Hand Operated (SKU JA-TMMHO-2451) is a wheel-driven press for making tablets of up to 100 mg in pharmaceutics practicals. Turning the wheel feeds the granules from a stainless steel hopper, compresses them and ejects the finished tablet automatically, and an eccentric pressure system sets tablet thickness and hardness. This hand operated tablet press comes with one 9 mm chromium steel punch and die set, and JaincoLab manufactures it for pharmacy college laboratories.
Specifications
The press makes tablets up to 100 mg with a 9 mm punch and die, has automatic feed, compression and ejection driven by the wheel, an eccentric pressure system, a stainless steel hopper and a mild steel fabricated frame.
| Product | Tablet Making Machine Hand Operated |
| SKU | JA-TMMHO-2451 |
| Tablet weight | Up to 100 mg |
| Punch and die | 9 mm, chromium steel, one set supplied |
| Operation | Hand operated wheel drive |
| Compression and ejection | Automatic, actuated by revolution of the wheel |
| Feed and removal | Automatic |
| Pressure setting | Eccentric pressure system for thickness and hardness |
| Hopper | Stainless steel |
| Frame | Mild steel fabrication |
Applications of the hand operated tablet press
Because it needs no power supply, the press can be used on any bench to show each stage of tablet compression slowly and clearly.
- Tablet compression practicals in B.Pharm and D.Pharm pharmaceutics
- Preparing small tablet batches for quality-control tests such as hardness and friability
- Studying the effect of compression pressure on tablet thickness and hardness
- Pharmaceutical technology teaching and small formulation trials
Scope of supply and ordering
The listing covers the hand operated press on its mild steel frame with stainless steel hopper and one 9 mm chromium steel punch and die set. Extra punch and die sets are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of machines and punch sets and the delivery destination. Single machines for pharmacy college laboratories and bulk institutional and tender orders are supplied.
Frequently asked questions
What tablet size can it make?
Tablets of up to 100 mg with the 9 mm punch and die.
How are thickness and hardness set?
With the eccentric pressure system.
Are feed and ejection automatic?
Yes. Feed, compression, ejection and removal are actuated by turning the wheel.
