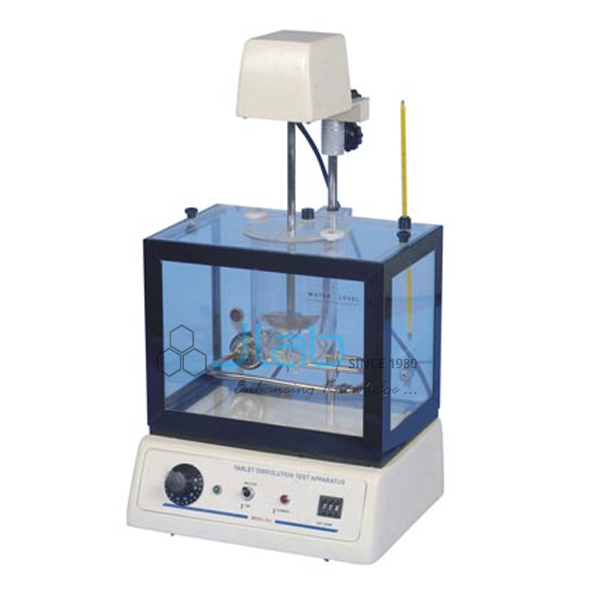

Tablet Dissolution Test Apparatus
Product Code : JA-DTA-2212
The Tablet Dissolution Test Apparatus (SKU JA-DTA-2212) is a single-test unit for studying how the active ingredient of a tablet or capsule dissolves. A 1000 ml dissolution vessel stands in a constant-temperature acrylic water bath, with stirrer speed held by a microprocessor controller and bath temperature by a thermostat. This tablet dissolution test apparatus is supplied by JaincoLab.
Specifications
The stirrer runs from 25 to 200 rpm at 1 rpm resolution and ±1 rpm accuracy with 25 to 40 mm depth adjustment, and the bath covers 10 to 50 °C at ±1 °C with a 1 kW heater.
| Product | Tablet Dissolution Test Apparatus |
| SKU | JA-DTA-2212 |
| Stirrer speed | 25 to 200 rpm; resolution 1 rpm; accuracy ±1 rpm |
| Depth adjustment | 25 mm to 40 mm |
| Bath temperature | 10 to 50 °C; accuracy ±1 °C |
| Temperature control | Thermostat, 0 to 85 °C |
| Vessel | 1000 ml jar with stirrer paddle and basket |
| Water bath | Acrylic tank with rectangular cover plate |
| Heater | 1 kW |
| Power | 230 V ±10% AC, 50 Hz |
| Dimensions (L x B x H) | 320 x 320 x 375 mm approx. |
| Weight | 9 kg approx. |
Applications of the tablet dissolution test apparatus
A single-vessel tester is suited to teaching laboratories and small-batch development work, where one tablet or capsule is followed through a dissolution run at a time.
- Dissolution studies in B.Pharm pharmaceutics practicals
- Tablet and capsule dissolution checks in small quality control laboratories
- Formulation trials in product development
- Demonstrations of dissolution rate in pharmacy teaching
Scope of supply and ordering
The listing covers the main unit with acrylic tank and cover plate, 1000 ml reaction vessel, round acrylic cover plate with hole and slit, stirrer motor with tightening knob, stainless steel paddle, shaft and clamp, stainless steel wire mesh basket, glass thermometer, support rod with acrylic block, instruction manual and dust cover. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. JaincoLab supplies single units and sets for pharmacy colleges, laboratories and tender orders.
Frequently asked questions
How many vessels does it hold?
One 1000 ml dissolution vessel with paddle and basket.
What stirrer speeds are available?
25 to 200 rpm, controlled to ±1 rpm by a microprocessor speed controller.
What bath temperature range does it cover?
10 to 50 °C, held to ±1 °C.
Related products
- Microprocessor Dissolution Test Apparatus
- Dissolution Rate Test Equipment
- Disintegration Test Machine
- Disintegrator
Dissolution testers are grouped in the JaincoLab dissolution test apparatus range.
Request a quote
To order the Tablet Dissolution Test Apparatus, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-DTA-2212. For tender or project supply, see our tenders page.
