Survey Lab Equipments
Product Code : JA-SE-6438
The survey lab equipments listing (SKU JA-SE-6438) groups the instruments needed to equip a surveying laboratory for civil engineering colleges, polytechnics and ITIs: chains, ranging rods, staffs, compasses, levels, a theodolite, plane table, planimeter, pantograph and drawing boards. Institutes select the items to match their practical list, and JaincoLab quotes and supplies them item by item or as a complete laboratory.
Specifications
The product data for the survey lab equipments listing names the instruments included rather than technical values; drawing boards of 30 x 42 inch and 23 x 32 inch and a 20 metre Gunter chain are named, and other specifications are confirmed on the quotation.
| Product | Survey Lab Equipments |
| SKU | JA-SE-6438 |
| Chains and rods | Measuring chain 20 metre Gunter chain; ranging rod; arrows; hanging rod with stand |
| Staffs | Survey staff, aluminium, 4 metre, 4 fold |
| Compass work | Prismatic compass with aluminium stand |
| Levelling | Dumpy level with stand; IOP level with aluminium stand; Abney level |

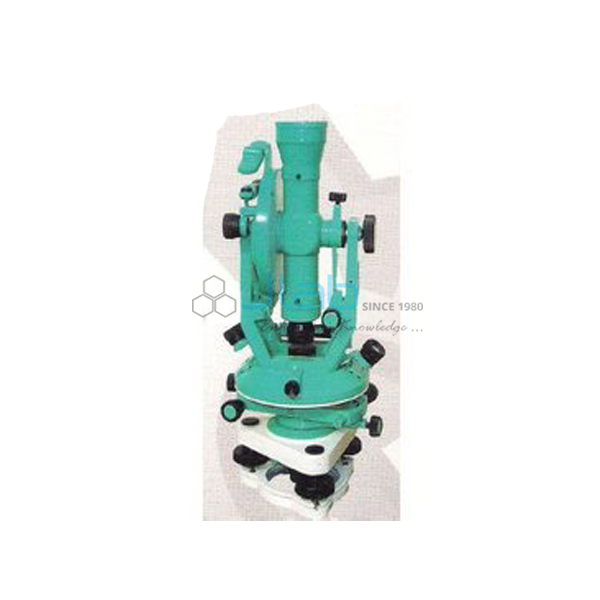

| Angles | Theodolite complete set with aluminium stand; clinometer |
| Plane tabling | Plane table set complete; telescopic alidade |
| Offsets and ranging | Optical square; cross staff; line ranger |
| Drawing and area | Pantograph; planimeter; drawing boards 30 x 42 inch and 23 x 32 inch |
| Item specifications | Confirmed on the quotation |
Applications of a survey lab equipment set
A survey lab equipment set covers the practicals of surveying courses, from chain and compass surveying through levelling and plane tabling to theodolite traversing, plotting and area measurement.
- Chain, tape and offset surveying
- Compass surveying with the prismatic compass
- Levelling with dumpy and IOP levels
- Plane table surveying with telescopic alidade
- Theodolite traversing, plotting and area measurement
Scope of supply and ordering
The listing covers the surveying instruments named in the table, which can be quoted singly or as a complete laboratory. Specifications, quantities and accessories for each item are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the items selected, the quantities and the delivery destination. Complete survey laboratories for new institutes and single items for existing laboratories are supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which instruments are in the survey lab list?
Chains, ranging rods, arrows, a 4 metre aluminium staff, prismatic compass, dumpy, IOP and Abney levels, theodolite, plane table with telescopic alidade, optical square, cross staff, line ranger, clinometer, pantograph, planimeter and drawing boards.
Can I order only some of the items?
Yes. Each instrument can be quoted on its own, or several can be combined into a complete survey laboratory.
Are specifications given for each item?
The listing names the items; specifications and accessories for each are confirmed on the quotation.
Related products
Individual instruments are listed in the JaincoLab survey equipment range.
Request a quote
To order the survey lab equipments listed here, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
