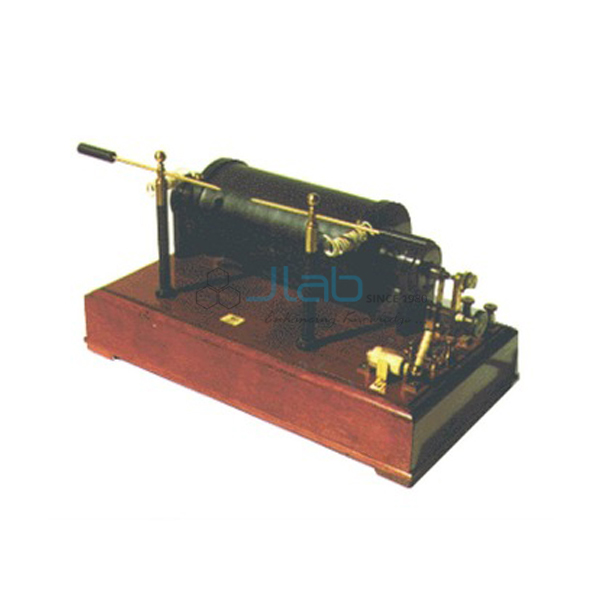

Student Induction Coil
Product Code : JA-SIC-2403
The Student Induction Coil (SKU JA-SIC-2403) produces the single and repeated electrical stimuli used in student nerve-muscle experiments. This student induction coil has a 300-turn primary and a 6500-turn secondary on a teakwood base with a graduated scale, and an interrupter that works directly off the iron core, with heavy duty contacts. JaincoLab manufactures it for physiology practicals in medical, pharmacy and life-science colleges.
Specifications
The coil is built on a teakwood base with graduated scale, with a 300-turn primary, a 6500-turn secondary, an interrupter operated directly by the iron core and heavy duty contacts.
| Product | Student Induction Coil |
| SKU | JA-SIC-2403 |
| Base | Teakwood with graduated scale |
| Primary coil | 300 turns |
| Secondary coil | 6500 turns |
| Interrupter | Works directly off the iron core |
| Contacts | Heavy duty |
Applications of the student induction coil
Changing the position of the secondary along the scale varies stimulus strength, while the core interrupter supplies repeated shocks for tetanus experiments.
- Frog sciatic nerve-gastrocnemius muscle experiments in physiology practicals
- Demonstrating threshold stimulus, summation and tetanus
- Stimulus control in simple pharmacology practicals
- Student physiology benches in medical, pharmacy and B.Sc colleges
Scope of supply and ordering
The listing covers the coil on teakwood base with graduated scale, core interrupter and heavy duty contacts. Keys, power supply and electrodes are separate items. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of coils and the delivery destination. Class sets for student benches and bulk institutional and tender quantities are supplied.
Frequently asked questions
What are the windings?
A 300-turn primary and a 6500-turn secondary.
How does the interrupter work?
It works directly off the iron core, with heavy duty contacts.
How does it compare with the Du Bois-Reymond coil?
The Induction Coil JA-IC-2402 has a 7500-turn secondary and a Helmholtz-modified Neef hammer with platinum contacts.
Related products
This model is listed in the JaincoLab student induction coils category.
Request a quote
To order the Student Induction Coil, send the quantity, keys or electrodes needed and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-SIC-2403. Institutions and contractors buying under a tender can also reach us via the tenders page.
