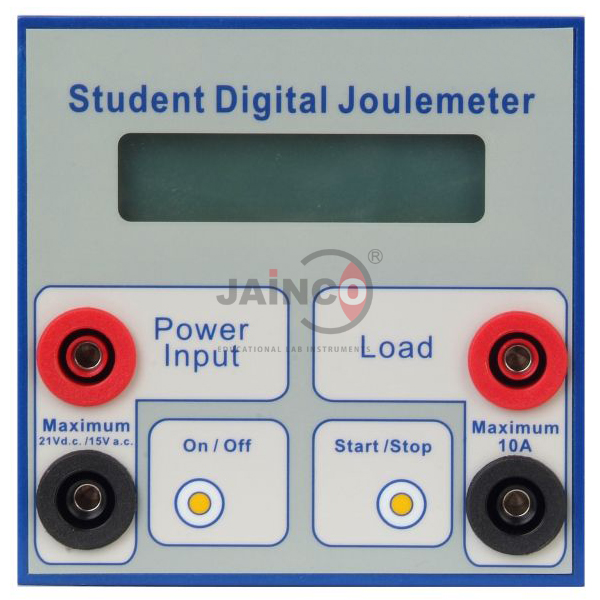

Student Digital Joulemeter
Product Code : JA-M-7834
The Student Digital Joulemeter (SKU JA-M-7834) is a compact bench meter that measures the electrical energy supplied to a load in student heating and power experiments. This student digital joulemeter handles loads up to 10 A AC or DC at up to 15 V AC or 21 V DC, and its built-in timer starts and stops together with the energy count and the power to the load. JaincoLab manufactures it in India for school and college physics laboratories.
Specifications
The Student Digital Joulemeter accepts up to 10 A AC/DC load current at 0–15 V AC or 0–21 V DC, uses a microprocessor with a precision voltage multiplier, shows results on a 2 × 16 character LCD with a built-in timer, and measures 90 × 90 × 33 mm.
| Product | Student Digital Joulemeter |
| SKU | JA-M-7834 |
| Maximum load current | 10 A AC/DC |
| Input voltage | 0–15 V AC or 0–21 V DC maximum |
| Timing | Built-in timer: start button starts timer, joulemeter and power to the load together; stop button stops them and disconnects the load |
| Circuitry | Microprocessor with a precision voltage multiplier |
| Display | 2 × 16 character LCD |
| Dimensions | 90 × 90 × 33 mm |
Applications of the student digital joulemeter
Students connect the joulemeter between a low-voltage supply and a heater, lamp or motor, press start, and read the energy delivered and the elapsed time together, which makes specific heat and power experiments quicker and removes separate stopwatch timing.
- Specific heat capacity of solids and liquids with an electrical heater
- Specific latent heat of fusion or vaporisation
- Measuring the energy used and the power of lamps and small motors
- Energy transfer and efficiency investigations in secondary school physics
Scope of supply and ordering
Each unit is one Student Digital Joulemeter with its built-in timer, as described above. Power supplies, heaters, leads and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies class sets of joulemeters for schools and colleges, bulk orders for education projects and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What load and voltage can the Student Digital Joulemeter handle?
It handles a maximum load current of 10 A AC/DC with an input of 0–15 V AC or 0–21 V DC.
How does the built-in timer work?
The start button starts the timer and joulemeter together and powers up the load; the stop button stops both and disconnects the power.
What display does it have?
A 2 × 16 character LCD.
