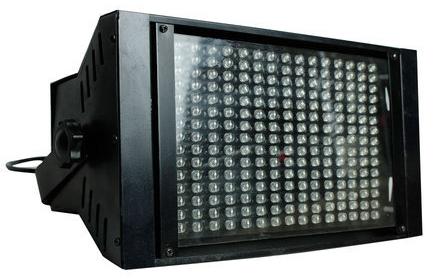

Strobe Light
Product Code : JL-LEP-10392
The Strobe Light (SKU JL-LEP-10392) is an LED strobe light that gives flashes of light at 2.5–250 Hz so that the position of fast-moving objects can be recorded, for example with a camera. This led strobe light uses a high-output white LED with stepless frequency control and pulse-width adjustment, runs on rechargeable batteries or a DC adapter, and has an RCA connection for a frequency meter. JaincoLab supplies it to school and college physics laboratories.
Specifications
The strobe light uses a 1 W (350 mA) white LED flashing at a steplessly variable 2.5 to 250 Hz with stage-switched pulse width and fine tuning, runs on rechargeable batteries with charger or a DC adapter, measures at least 54 × 40 × 69 mm, weighs about 171 g without batteries and has RCA connections for a frequency meter.
| Product | Strobe Light |
| SKU | JL-LEP-10392 |
| Purpose | Provides flashes of light so that the position of fast-moving objects can be recorded, for example by a camera |
| Light source | High-output white LED (350 mA, 1 W max.) |
| Frequency range | 2.5 Hz to 250 Hz, steplessly variable |
| Pulse width | Stage switching with fine-tune control |
| Power source | Rechargeable alkaline, Li-ion or Li-Po batteries with charger included, and/or direct DC adapter operation |
| Dimensions | 54 mm × 40 mm × 69 mm minimum |
| Weight | Approximately 171 g without batteries |
| Connectivity | RCA female terminal and male RCA plug with connectors for a frequency meter |
| Specification reference | As per DepEd guidelines |
Applications of the LED strobe light
The strobe is used in darkened rooms to freeze or slow the apparent motion of moving and vibrating objects, and to record positions at equal time intervals on a single camera exposure for motion analysis.
- Recording a falling or rolling ball at equal time intervals for acceleration analysis
- Freezing the apparent motion of a vibrating string or tuning fork
- Measuring rotation or vibration frequency by matching the flash rate
- Studying projectile motion from multiple-exposure photographs
- Mechanics and waves practicals in senior secondary and college physics
Scope of supply and ordering
The listing covers the LED strobe light with rechargeable batteries and charger and the RCA connectors described in the specification table. DC adapter, frequency meter and quantities are confirmed on the quotation.
Minimum order, lead time and packing are stated on the quotation for the number of units and the delivery destination. JaincoLab supplies physics laboratories, colleges and export buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What frequency range does the strobe light cover?
2.5 Hz to 250 Hz, steplessly variable.
What is the light source?
A high-output white LED (350 mA, 1 W maximum).
How is it powered?
By rechargeable batteries with the charger included, and/or directly from a DC adapter.
Can it connect to a frequency meter?
Yes. It has an RCA female terminal and a male RCA plug with connectors for a frequency meter.
Related products
Mechanics and waves apparatus often ordered with the strobe light:
More mechanics and waves apparatus is listed in the Laboratory Equipment Products range of JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Strobe Light, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
