Stirrer Guides
Product Code : JA-S-1693

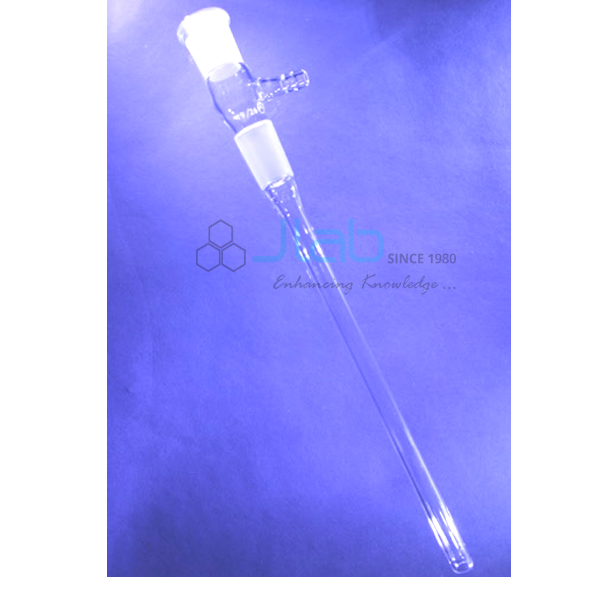

Stirrer Guides (product code JA-S-1693) are guide tubes that keep an overhead stirrer shaft straight and centred as it passes into a flask or reaction vessel. Each stirrer guide has a long stem that supports the shaft over a greater length than a short gland, which reduces wobble on long shafts. Two sizes are listed: a 250 mm stem for 6 mm shafts and a 350 mm stem for 11 mm shafts, with ground-glass joints for fitting to the vessel.
Specifications
The stirrer guides are listed by stem length, shaft size and joint sizes. The 350 mm guide for 11 mm shafts has a B24 socket and B24 cone; the 250 mm guide for 6 mm shafts has a B19 socket and a cone listed as B9.
| Product | Stirrer Guides |
| SKU / Product code | JA-S-1693 |
| Type | Stirrer guide |
| 250 mm stem | To fit 6 mm shaft; socket B19, cone B9 (as listed) |
| 350 mm stem | To fit 11 mm shaft; socket B24, cone B24 |
Applications of the stirrer guide
Stirrer guides are used with long or heavy stirrer shafts, where a short gland alone would let the shaft whip or wear unevenly.
- Guiding the 750 mm, 11 mm anchor and fixed paddle stirrers
- Keeping 6 mm shafts centred in tall reflux set-ups
- Reducing vibration and wear during long stirring runs
- Research and pilot-scale reaction vessels
Scope of supply and ordering
The listing covers stirrer guides in the sizes and quantities you order. Shafts, glands, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for quantity and destination. JaincoLab supplies single laboratories, bulk orders for colleges and research institutes, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which sizes are listed?
A 250 mm stem for 6 mm shafts and a 350 mm stem for 11 mm shafts.
What joints does the 350 mm guide have?
A B24 socket and a B24 cone.
How is a guide different from a gland?
A guide supports the shaft over a longer stem, which suits long or heavy shafts. A gland is shorter and seals the neck.
Related products
Other stirrers and fittings in the same category:
- Stirrer Gland, Ground Sleeve
- Stirrer, Anchor
- Stirrer, Fixed Paddle
- Replacement Sleeve With Screw Cap to fit ST 1 And 1
All stirrer shafts, glands and guides are in the Stirrers category, part of the range from JaincoLab, a laboratory glassware manufacturer in India.
Request a quote
To order Stirrer Guides, send the sizes, quantities and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
