Steam Generator with handle
Product Code : JA-H-8019

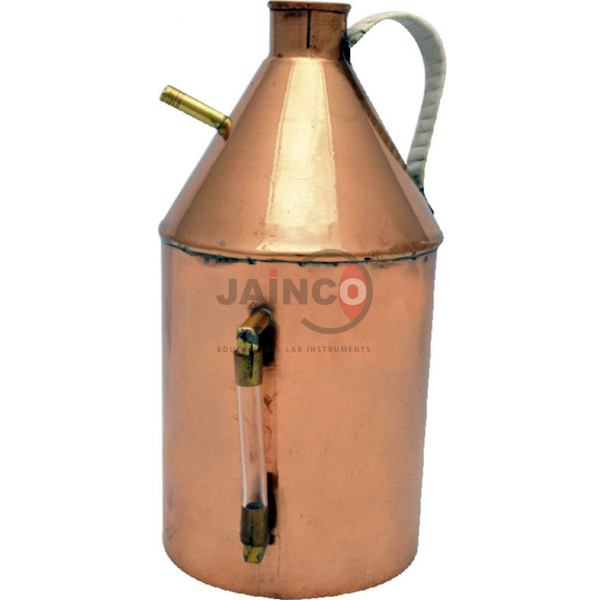

The JaincoLab copper steam generator (SKU JA-H-8019) supplies steam for heat experiments in the physics laboratory. It is made of copper, measures 280 x 115 mm and holds 1.5 L of water. A 23 mm diameter neck takes a stopper or safety tube, the side tube delivers steam to the apparatus, and a water gauge shows the level so that the vessel is never heated dry. A handle makes it easier to move. It is used in school and college heat practicals.
Specifications
The generator is constructed from copper, measures 280 x 115 mm and has a capacity of 1.5 L. It has a 23 mm diameter neck, a side tube for steam and a water gauge, and it is fitted with a handle. Values are from the product data.
| Product | Steam Generator with handle |
| SKU / Product code | JA-H-8019 |
| Material | Copper |
| Size | 280 x 115 mm |
| Capacity | 1.5 L |
| Neck | 23 mm diameter |
| Fittings | Side tube and water gauge |
| Handle | Fitted |
Applications of the copper steam generator
A steady steam supply is needed in several standard heat experiments. The generator is used for:
- Determining the latent heat of vaporisation of water
- Supplying steam to linear expansion apparatus
- Heating jackets and steam chambers for thermometer calibration
- Heat practicals in senior-secondary and B.Sc physics
Scope of supply and ordering
This listing covers the copper steam generator with handle, SKU JA-H-8019. Stoppers, tubing and burners can be added to the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. Generators are supplied singly or in bulk for schools, colleges and tender orders.
Frequently asked questions
What is the capacity of the steam generator?
1.5 L; the copper body measures 280 x 115 mm.
How is the water level checked?
A water gauge on the generator shows the level.
How is steam taken off?
Through the side tube; the neck is 23 mm in diameter.
