Standard Tar Viscometer
Product Code : JA-ALI-1707

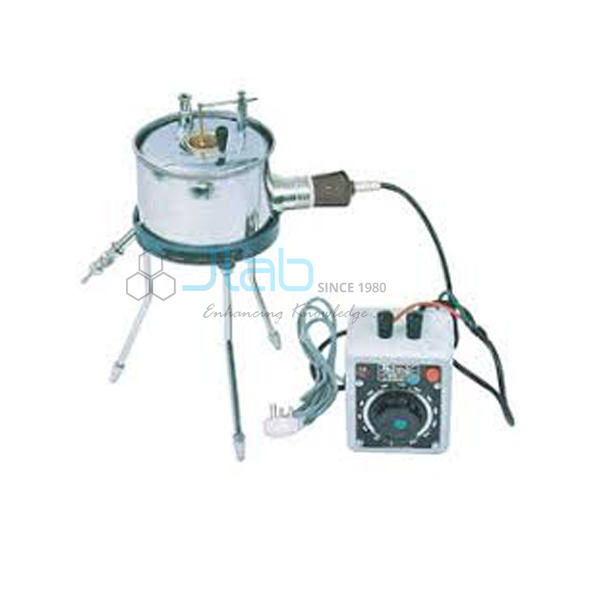

The Standard Tar Viscometer (SKU JA-ALI-1707) is used to determine the viscosity of cut back bitumen and road oil by timing their flow through an orifice cup at a controlled temperature. JaincoLab supplies this standard tar viscometer with electric heating and a choice of 10 mm or 4 mm cup, for highway and road-materials laboratories, bitumen plants and the transportation engineering laboratories of civil engineering colleges.
Specifications
The viscometer has a chrome-plated copper bath with a drain valve and a central tube that holds the test cup and positions the stirrer, on a stand with levelling feet; it is heated by immersion heating elements with a Dimmerstat and runs on a 220 V, 50 Hz, single-phase AC supply.
| Product | Standard Tar Viscometer |
| SKU | JA-ALI-1707 |
| Application | Viscosity of cut back bitumen and road oil |
| Bath | Chrome-plated copper, with drain valve and central tube for the test cup and stirrer |
| Stirrer | Curved shield, insulated handle, thermometer socket, swivel support for the valve |
| Cup and valve | 10 mm cup and ball valve, or 4 mm cup and ball valve, as per model |
| Heating | Immersion heating elements with Dimmerstat temperature control |
| Mounting | Stand with levelling feet |
| Power supply | 220 V, 50 Hz, single phase AC |
Applications of the standard tar viscometer
Road engineers use the tar viscometer to grade cut back bitumen and road oils by viscosity before they are used in surface dressing and road construction, and students use it in highway materials practicals.
- Viscosity grading of cut back bitumen
- Viscosity of road oils and similar binders
- Quality checks in bitumen plants and road-construction site laboratories
- Highway materials practicals in civil engineering colleges
Scope of supply and ordering
The listing covers the electrically heated standard tar viscometer with its chrome-plated copper bath, stirrer, stand and the 10 mm or 4 mm cup with ball valve of the model ordered. Thermometers, a second cup size and other extras are quoted separately. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the model, the quantity and the delivery destination. JaincoLab supplies single instruments to road laboratories and multiple units for engineering college and institutional orders, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the tar viscometer used for?
It is used to determine the viscosity of cut back bitumen and road oil.
Which cup sizes are listed?
The viscometer is supplied with a 10 mm cup and ball valve or a 4 mm cup and ball valve, according to the model required.
How is it heated?
It uses immersion heating elements with a Dimmerstat for temperature control, on a 220 V, 50 Hz, single-phase supply.
Related products
Oil viscometers and flash point testers are listed in the JaincoLab analytical lab instrument range.
Request a quote
To order the Standard Tar Viscometer, send the cup size, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
