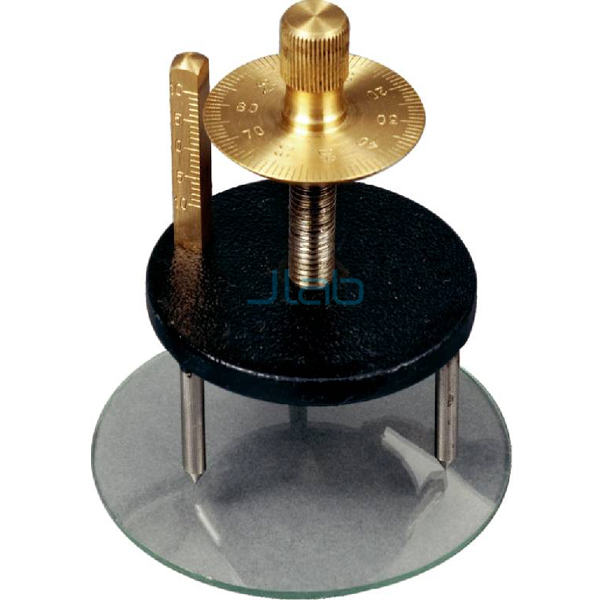

Spherometer Double Disc (Stainless Steel)
.jpg)
Product Code : JA-MI-2123
The Spherometer Double Disc (Stainless Steel), SKU JA-MI-2123, measures the radius of curvature of a spherical surface such as a lens or curved mirror, from the small height a central screw rises above the plane of three legs. In this double disc spherometer both the screw and the legs are made of stainless steel. The listing gives no pitch or least count, so these are confirmed on the quotation. JaincoLab manufactures it for school and college physics laboratories.
Specifications
The listing states that the screw and legs are of stainless steel; pitch, least count, disc graduation and leg spacing are confirmed on the quotation.
| Product | Spherometer Double Disc (Stainless Steel) |
| SKU | JA-MI-2123 |
| Type | Spherometer, double disc |
| Screw | Stainless steel |
| Legs | Stainless steel |
| Pitch and least count | Confirmed on the quotation |
Applications of the double disc spherometer
Reading the screw on a flat glass plate and then on the curved surface gives the sagitta, from which the radius of curvature follows.
- Radius of curvature of convex and concave lenses in physics practicals
- Curvature of spherical mirrors and watch glasses
- Measuring small thicknesses with the screw scale
- Class 11 and 12 and B.Sc physics laboratories
Scope of supply and ordering
The listing covers the stainless steel double disc spherometer. A flat glass plate and carrying case are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of pieces and the delivery destination. Single pieces, class sets and bulk school, college and tender quantities are supplied.
Frequently asked questions
What does a spherometer measure?
The radius of curvature of spherical surfaces such as lenses and mirrors, and small thicknesses.
What are the screw and legs made of?
Stainless steel.
Where are the pitch and least count given?
They are not in the listing and are confirmed on the quotation.
