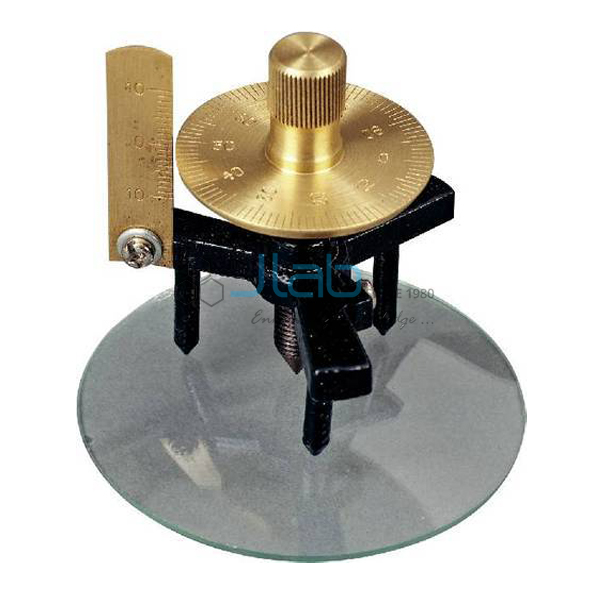

Spherometer Disc Type
Product Code : JA-MI-2120
The Spherometer Disc Type (SKU JA-MI-2120) measures the radius of curvature of lenses and spherical mirrors. It has a small metal frame supported on three legs at the corners of an equilateral triangle, with a fine pitch screw through the centre that forms the fourth leg. This disc type spherometer carries a pitch scale in millimetres with zero at the centre (10-0-10 mm) and a circular scale on the screw head divided into 100 parts, or 50 in some versions. JaincoLab manufactures it for school and college physics.
Specifications
The pitch scale on a metal strip at right angles to the frame reads 10-0-10 mm, and the circular scale on the screw head has 100 equal divisions (50 in some versions).
| Product | Spherometer Disc Type |
| SKU | JA-MI-2120 |
| Frame | Metal, three legs at the corners of an equilateral triangle |
| Central screw | Fine pitch, forms the fourth leg |
| Pitch scale | Millimetres, 10-0-10 mm, on a metal strip at right angles to the frame |
| Circular scale | 100 equal divisions (50 in some versions) |
Applications of the disc type spherometer
The height of the central screw above the plane of the three legs, with the leg spacing, gives the radius of curvature of the surface.
- Radius of curvature of a convex lens in class 11 and 12 practicals
- Curvature of concave and convex mirrors
- Thickness of thin glass plates
- B.Sc physics measurement practicals
Scope of supply and ordering
The listing covers the disc type spherometer. A flat glass plate is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of pieces and the delivery destination. Single pieces, class sets and bulk school, college and tender quantities are supplied.
Frequently asked questions
How is it built?
A metal frame on three legs at the corners of an equilateral triangle, with a central screw as the fourth leg.
What do the scales read?
A 10-0-10 mm pitch scale and a circular scale of 100 divisions (50 in some versions).
What is it used for?
Measuring the radius of curvature of lenses and spherical mirrors.
Related products
- Spherometer Disc Type (Stainless Steel)
- Spherometer Double Disc
- Spherometer Demonstration Model
- Micrometer Screw Gauge
This spherometer is listed in the JaincoLab measuring instruments range.
Request a quote
To order the Spherometer Disc Type, send the circular scale division, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-MI-2120. For tender or project supply, see our tenders page.
