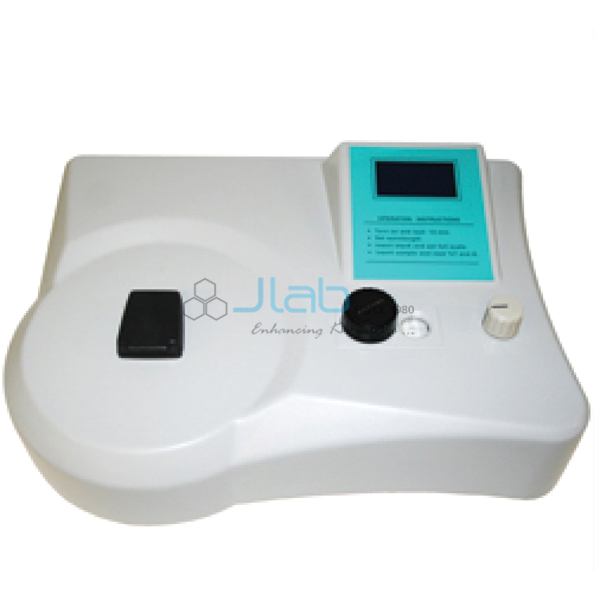

Spectrophotometer 400-1000nm
Product Code : JA-LE-8252
The Spectrophotometer 400-1000nm (SKU JA-LE-8252) is a single-beam visible spectrophotometer for school, college and general laboratory work. A large graphic LCD gives readings in absorbance and transmittance, and USB and RS232 ports link it to a Windows computer. The sample compartment accepts 13 mm round glass tubes or 10 mm square cuvettes, and built-in secondary filters reduce stray light. It is supplied by JaincoLab.
Specifications
Optical and electrical values as listed:
| Product | Spectrophotometer 400-1000nm |
| SKU | JA-LE-8252 |
| Wavelength range | 400 to 1000 nm |
| Bandwidth | 15 nm |
| Optical system | Single beam, grating 1200 lines/mm |
| Wavelength accuracy / repeatability | +/-2 nm / +/-1 nm |
| Display | Graphic LCD; absorbance and transmittance |
| Stray energy | Below 1% at 400 nm |
| Photometric range | 0-125 %T; -0.3 to 2.0 A |
| Photometric accuracy | +/-2 %T |
| Light source | Tungsten halogen lamp, 6 V / 10 W |
| Outputs | USB (PC link) and RS232 |
| Power | 90-240 V AC, 50-60 Hz, 50 VA |
| Size | 18 x 11 x 6.5 in (W x D x H) |
Uses of the visible spectrophotometer
Across 400 to 1000 nm it handles routine work such as:
- Absorbance and transmittance readings in school and college practicals
- Colorimetric measurements in round tubes or square cuvettes
- Logging results to a PC over USB or RS232 for records
Scope of supply and ordering
Each unit comes with a 13 mm round tube holder, a 10 mm square cuvette adapter, a box of twelve round glass cuvettes, a dust cover and a user manual; the optional software is quoted separately, with quantity, packing and lead time.
Frequently asked questions
Which sample cells can be used?
Round 13 mm optical glass tubes or 10 mm pathlength square cuvettes, using the supplied adapter.
Can readings be transferred to a computer?
Yes, through the USB port or the RS232 port to a Windows-based computer; optional software adds further analysis and documentation.
What readings does it display?
Absorbance and transmittance on a large graphic LCD.
