Soxhlet Extraction Unit
Product Code : JA-SEU-2095

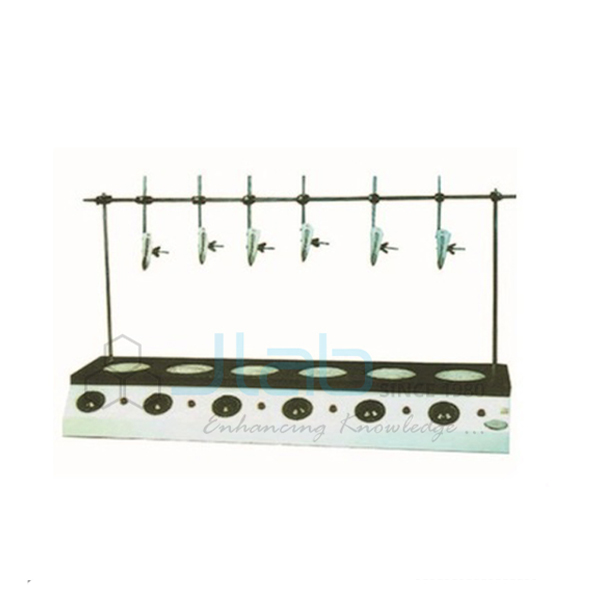

The Soxhlet Extraction Unit (SKU JA-SEU-2095) is a multi-place heating unit on which Soxhlet extractors are set up to extract oils, fats and other soluble matter from solids with a refluxing solvent. JaincoLab makes this Soxhlet extraction unit in 3 and 6 place versions with mantle, heater, hot plate or water bath heating, for pharmacognosy, food, agriculture and chemistry laboratories.
Specifications
The body is mild steel in stove paint with chrome-plated upright fittings; the mantle type has heating mantles to 300 °C surface temperature with individual switches and pilot lamps (600 W for 3 places, 1200 W for 6), and the other types use heaters, hot plates or stainless steel water baths.
| Product | Soxhlet Extraction Unit |
| SKU | JA-SEU-2095 |
| Body | Mild steel, stove paint; upright fittings and other parts chrome plated |
| Mantle type | Heating mantles to 300 °C surface; individual on-off switches and pilot lamps; 3 mantles 600 W or 6 mantles 1200 W |
| Heater type | 3 or 6 heaters with individual switches and indicators; one common energy regulator |
| Hot plate type | 3 or 6 hot plates |
| Bath type | 3 or 6 baths; single-wall stainless steel chamber or double wall with stainless steel inner |
| Glass parts | Not included |
| Option | Energy regulator for all versions |
Applications of the Soxhlet extraction unit
Soxhlet extraction repeatedly washes a solid sample with fresh condensed solvent, which is the standard way to find fat and oil content and to extract active constituents from plant material.
- Fat and oil content of foods, seeds and feeds
- Extraction of crude drugs in pharmacognosy practicals
- Solvent extraction in agriculture and chemistry laboratories
- Running several extractions side by side in teaching laboratories
Scope of supply and ordering
The listing covers the extraction heating unit in the type and number of places ordered, with its switches and lamps; Soxhlet glassware is not included and is quoted separately. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the type, number of places, number of units and the delivery destination. JaincoLab supplies extraction units with matching glassware for college and testing laboratories.
Frequently asked questions
Which heating types are offered?
Heating mantle, heater, hot plate and water bath types.
How many places are available?
3 place and 6 place units.
Is the Soxhlet glassware included?
No. The units are supplied without glass parts; glassware is quoted separately.
Related products
- Kjeldahl Digestion Units
- Kjeldahl Digestion and Distillation Units Combined
- Laboratory Hot Plate
- Hot Air Universal Oven
The unit is listed in the JaincoLab Soxhlet extraction unit range.
Request a quote
To order the Soxhlet Extraction Unit, send the heating type, number of places, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
