Saw
Product Code : JA-WT-8784

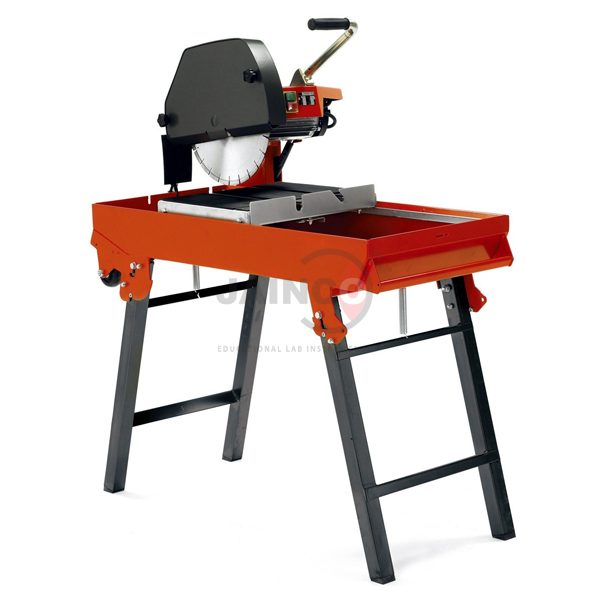

This saw is a bench masonry cutting saw for bricks, blocks, rocks, tiles and slabs in building construction training. It takes diamond discs up to 450 mm at up to 2800 rpm, cuts up to 500 mm long and 120 mm thick, and has a 2200 W motor on 220-240 V, 50 Hz single phase, a water cooling pump, pedal control and an emergency switch (SKU JA-WT-8784).
Specifications
Listed specification:
| Product | Saw |
| SKU | JA-WT-8784 |
| Disc | Up to 450 mm; maximum 2800 rpm |
| Maximum cutting length | 500 mm |
| Maximum cutting thickness | 120 mm |
| Supply | 220-240 V AC, 50 Hz, single phase |
| Rated power | 2200 W |
| Sliding table/carriage | 570 x 430 mm, 550 mm travel |
| Fitted with | Pedal control; water cooling circulation pump; emergency switch; cutting angle device; beam for cutting height |
| Dimensions | 1220 x 700 x 1360 mm |
| Weight | 130 kg |
| Accessory blades | 350, 400 and 450 mm diamond blades |
Scope of supply and ordering
The listing covers one masonry cutting saw, supplied by JaincoLab; the diamond blade sizes are chosen on the quotation. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
What can it cut?
Small to medium building materials such as bricks, blocks, rocks, tiles and slabs.
What are its cutting limits?
Up to 500 mm long and 120 mm thick, with discs up to 450 mm.
Is the blade water cooled?
Yes, a water cooling circulation pump is fitted.
Related products
Browse the full workshop tools range for related items.
Request a quote
Ask for the price of the Saw by quoting SKU JA-WT-8784 on the JaincoLab contact page. For tender or project supply, see our tenders page.
