Round Table Microscope
Product Code : JA-ELA-5481

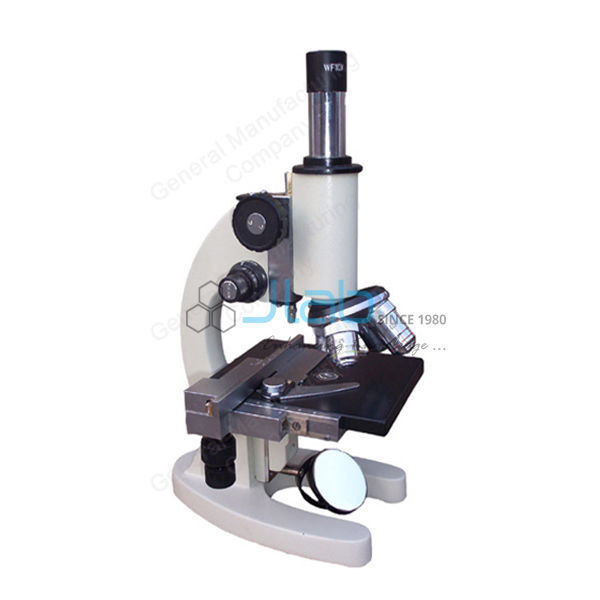

The Round Table Microscope (SKU JA-ELA-5481) is a monocular laboratory microscope made by JaincoLab, with a hinged horseshoe-shaped base that lets the body incline through 90 degrees. It suits college biology and microbiology practicals where a mechanical stage, an Abbe condenser with iris diaphragm and fine focusing graduated to 0.002 mm are needed.
Specifications
The construction, optics and stage of the round table microscope are listed below.
| Product | Round Table Microscope |
| SKU | JA-ELA-5481 |
| Body | Monocular, on a hinged horseshoe-shaped base, inclinable through 90 degrees |
| Castings | Aluminium die-cast parts |
| Mechanical tube length | 160 mm |
| Nosepiece | Triple or quadruple revolving, with positive centring and click stop |
| Coarse focus | Rack and pinion |
| Fine focus | Graduated, reading to 0.002 mm |
| Stage | Fixed square stage 120 mm x 120 mm with detachable graduated mechanical stage |
| Stage movement | X and Y; travel given as 40 mm to 75 mm |
| Condenser | Two-lens Abbe, NA 1.25, with iris diaphragm and swing-out filter holder; rack-and-pinion or fixed |
| Mirror | Plano-concave, 50 mm diameter, in fork; replaceable by a substage lamp |
| Safety | Stopper to prevent damage to slide and objectives |
| Finish | Black stoving and hard chromium |
Applications of the round table microscope
- Slide examination in college biology, zoology and botany practicals
- Microbiology and pathology teaching at high magnification, where the NA 1.25 Abbe condenser is needed
- Laboratories without steady daylight, by replacing the mirror with a substage lamp
Scope of supply and ordering
The listing covers the microscope stand with the nosepiece, stage, condenser and mirror described; the choice of triple or quadruple nosepiece, objectives, eyepieces, quantity and packing are confirmed on the quotation.
Frequently asked questions
Can the microscope be tilted?
Yes. The hinged horseshoe base lets the body incline through 90 degrees.
How fine is the focusing?
The graduated fine motion reads to 0.002 mm; coarse focusing is by rack and pinion.
Can a lamp be used instead of the mirror?
Yes. The 50 mm plano-concave mirror in its fork can be replaced by a substage microscope lamp.
Related products
Further microscopes and accessories are in the educational laboratory apparatus range.
Request a quote
Request a quotation for the Round Table Microscope (JA-ELA-5481), stating the nosepiece and objectives you need, through the contact page. Tender and project enquiries can be sent through the tenders page.
