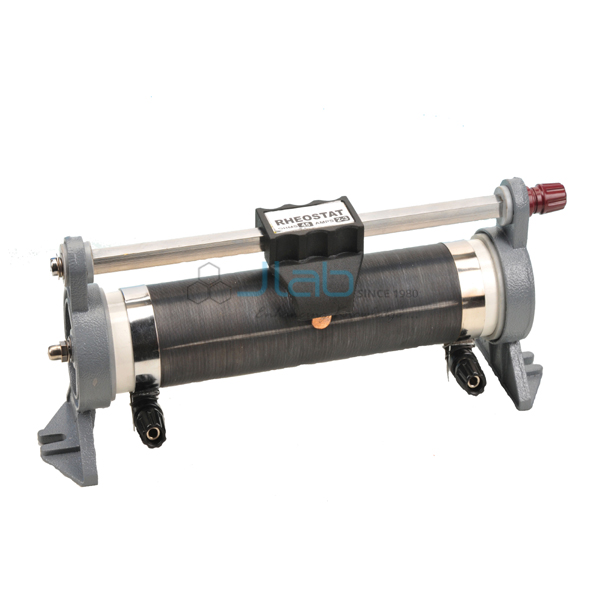

Rheostat 1600 OHM
Product Code : JA-EE-7504
The Rheostat 1600 OHM (SKU JA-EE-7504) is a 1600 ohm sliding rheostat for controlling current and dividing voltage in school and college electricity practicals. This 1600 ohm rheostat is wound with heavily oxidised resistance wire on a vitreous enamel steel tube held on die-cast end stands, and has a nickel-plated sliding contact and 4 mm terminal posts. JaincoLab supplies it with lower-value rheostats in the same range.
Specifications
The Rheostat 1600 OHM has a total resistance of 1600 ohm, wound with heavily oxidised resistance wire on a vitreous enamel steel tube supported on die-cast end stands; a heavy-duty nickel-plated sliding contact resists corrosion, and 4 mm terminal posts accept a conventional 4 mm plug. The current rating is confirmed on the quotation.
| Product | Rheostat 1600 OHM |
| SKU | JA-EE-7504 |
| Resistance | 1600 ohm |
| Winding | Heavily oxidised resistance wire on a vitreous enamel steel tube |
| Supports | Die-cast end stands |
| Sliding contact | Heavy duty, nickel plated for corrosion resistance |
| Terminals | 4 mm terminal posts for a conventional 4 mm plug |
Applications of the 1600 ohm rheostat
A high-value rheostat such as the 1600 ohm unit is used where small currents must be controlled finely, or it is connected as a potential divider so that its slider takes off any fraction of a supply voltage for meters, bridges and sensor circuits.
- Potential divider supply for voltmeter and potentiometer circuits
- Fine control of small currents in galvanometer and bridge circuits
- Setting low currents in semiconductor characteristic experiments
- Voltage control for high-resistance loads
- B.Sc and senior-school electricity practicals
Scope of supply and ordering
The listing covers one 1600 ohm rheostat with sliding contact and 4 mm terminal posts. Leads and meters are separate items. The current rating, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity, the values and the delivery destination. JaincoLab supplies rheostats singly or in class quantities for schools, colleges and education projects.
Frequently asked questions
What is the resistance of this rheostat?
It is 1600 ohm.
How is the rheostat constructed?
Heavily oxidised resistance wire is wound on a vitreous enamel steel tube supported on die-cast end stands, with a nickel-plated sliding contact.
How is it connected?
Through 4 mm terminal posts that take a conventional 4 mm plug.
Related products
Rheostats from 2.5 to 1600 ohm and other resistance equipment are in electricity equipment from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Rheostat 1600 OHM, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
