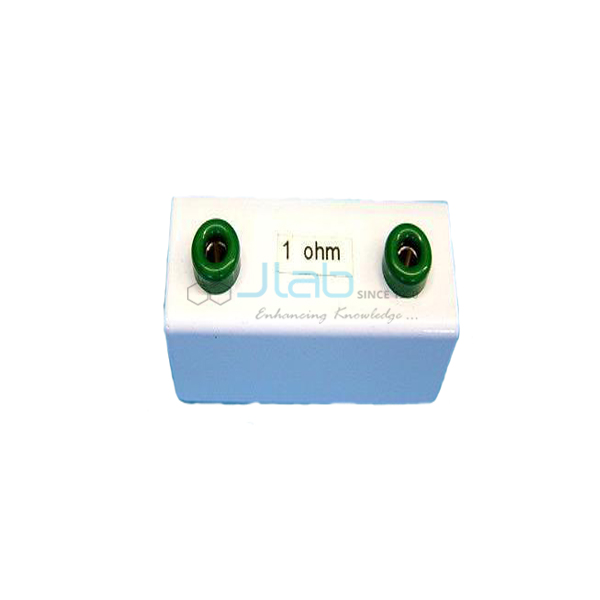

Resistance Coil 1 OHM
Product Code : JA-EE-7486
The Resistance Coil 1 OHM (SKU JA-EE-7486) is a 1 ohm resistance unit built as a block with 4 mm sockets, so it can be added to any circuit in basic electrical experiments without soldering or clipping bare resistors. This 1 ohm resistance coil with 4 mm sockets suits low-resistance work in school and college practicals, such as series and parallel combinations. JaincoLab supplies it with other values in the same range.
Specifications
The Resistance Coil 1 OHM provides a resistance of 1 ohm in a block fitted with 4 mm sockets, which replaces a simple loose resistor with a unit that connects directly to 4 mm plug leads; tolerance and power rating are confirmed on the quotation.
| Product | Resistance Coil 1 OHM |
| SKU | JA-EE-7486 |
| Resistance | 1 ohm |
| Form | Resistance unit (block) |
| Connections | 4 mm sockets |
| Use | Adding a known resistance to circuits in basic electrical experiments |
Applications of the 1 ohm resistance coil
A 1 ohm unit is used where a small, known resistance is needed in a circuit, for example when students check the rules for resistors in series and parallel, add a current-limiting resistance or compare measured and calculated values with low-value combinations.
- Series and parallel combinations with 2 and 5 ohm units
- Adding a small known resistance to a cell circuit
- Checking ammeter and voltmeter readings against calculated values
- Internal resistance and terminal voltage investigations
- Class sets of resistance units for 4 mm circuit work
Scope of supply and ordering
Each listing is one 1 ohm resistance unit with 4 mm sockets. Other values, leads and meters are separate items. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity, the values ordered and the delivery destination. JaincoLab supplies resistance units singly or as mixed-value class sets, including export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What resistance does this unit provide?
It provides 1 ohm.
How is it connected?
It is a block with 4 mm sockets, so it connects with standard 4 mm plug leads.
Which other values are available?
The range also lists 2, 5, 10, 20, 50 and 100 ohm resistance coils.
Related products
Resistance coils, rheostats and potentiometers are all in electricity equipment from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Resistance Coil 1 OHM, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
