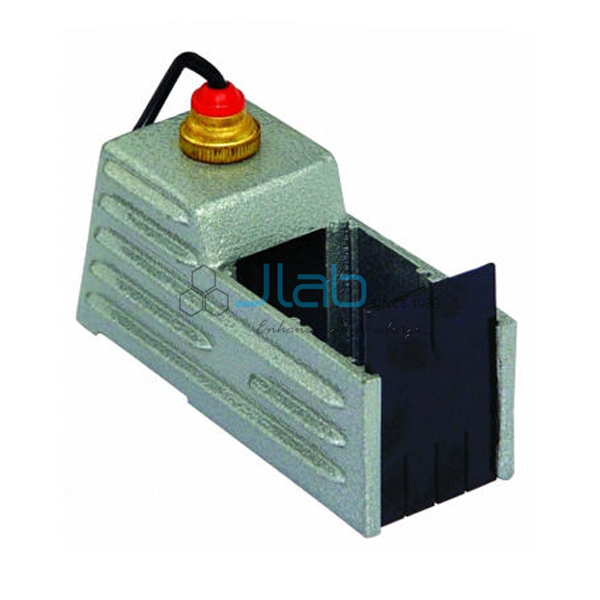

Ray Box (Metal)
Product Code : JC-SL-4695
The metal ray box (SKU JC-SL-4695) is a light source for school optics practicals. Its ventilated lamp house has an open front, extended sides finned on the outside to dissipate heat, and vertical grooves inside that take a slit plate and a cylindrical lens. A 12 V lamp in a holder is connected by one metre of twin flex with banana plugs. With filters and lenses it produces parallel and other rays and coloured effects.
Specifications
The construction and electrical details in the listing are:
| Product | Ray Box (Metal) |
| SKU | JC-SL-4695 |
| Body | Metal, ventilated lamp house with open front |
| Cooling | Extended sides finned externally |
| Internal grooves | Vertical, for slit plate and cylindrical lens |
| Slit plate | Metal, single and triple slits |
| Lamp | 12 V, in holder |
| Lead | 1 m twin flex with banana plugs |
Uses of the metal ray box
- Producing single or triple rays for reflection and refraction work
- Making parallel rays with the cylindrical lens
- Coloured ray effects with filters
- Tracing rays through a set of lenses
Scope of supply and ordering
The ray box comes with its slit plate and 12 V lamp on a flex lead. Filters, lenses and a 12 V supply are quoted separately if required, with quantities and packing.
Frequently asked questions
What lamp does the metal ray box use?
A 12 V lamp in a holder, connected by one metre of twin flex with banana plugs.
How are single and triple rays produced?
With the metal slit plate, which has single and triple slits and fits in the internal grooves.
Why is the lamp house finned?
The extended sides are finned externally to dissipate heat from the lamp.
Related products
- Ray Box with Optical Kit
- Ray Box with Slits (Superior Type)
- Colour Filters
- Battery Eliminator (0-12 Volts)
Light sources and optics apparatus are in the school lab equipment range.
Request a quote
Ask for a quotation on the metal ray box through our contact page, with the quantity. Institutions and contractors buying under a tender can also reach us via the tenders page.
