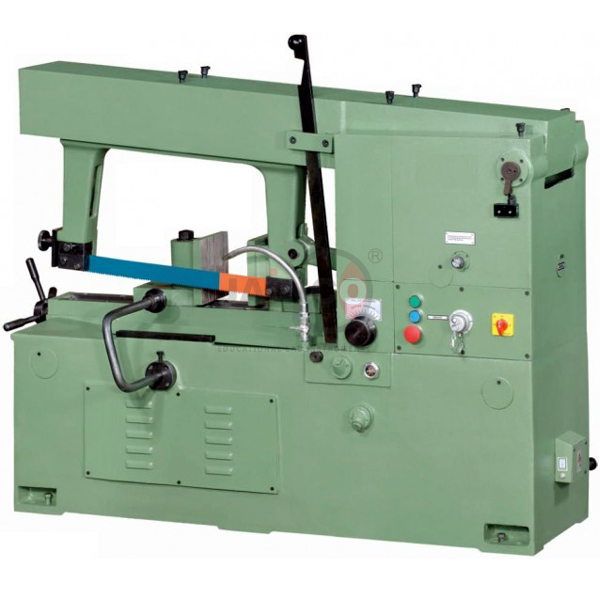

Power Hacksaw Machine
Product Code : JA-SWES-8745
The power hacksaw machine cuts metal bar and section to length in workshop training, with hydraulic movement of the cutting arm, which lifts clear of the work on the forward stroke and rises automatically when the cut is finished. A lever sets three cutting feeds, a motorised coolant system is fitted, and two sizes are listed with 200 or 300 mm round capacity (SKU JA-SWES-8745).
Specifications
Listed specification (smaller / larger size):
| Product | Power Hacksaw Machine |
| SKU | JA-SWES-8745 |
| Cutting capacity, round | 200 mm / 300 mm |
| Cutting capacity, square | 150 mm / 200 mm |
| Cutting capacity at 45° | 150 mm / 200 mm |
| Length of stroke | 140 mm / 160 mm |
| Strokes per minute | 80, 100, 125 |
| Blade size | 400 x 32 x 1.6 mm / 525 x 45 x 2.25 mm |
| Main motor | 0.75 kW / 1.5 kW |
| Features | Hydraulic arm movement; arm lift on forward stroke; three-speed cutting feed; auto lift after cut; motorised coolant system |
Scope of supply and ordering
The listing covers one power hacksaw machine in the size you select, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
Which sizes are listed?
Two: one cutting 200 mm round and 150 mm square, and one cutting 300 mm round and 200 mm square.
How is the blade protected on the forward stroke?
The arm lifts out of contact with the workpiece on the forward stroke.
Is coolant supplied?
Yes, a motorised coolant system is fitted.
Related products
The standard welding equipment set range lists further items of this kind.
Request a quote
Request a quotation for the Power Hacksaw Machine (SKU JA-SWES-8745) through the JaincoLab contact page. Tender and project enquiries can be sent through the tenders page.
