Potentio meter Module
Product Code : JA-EE-7472

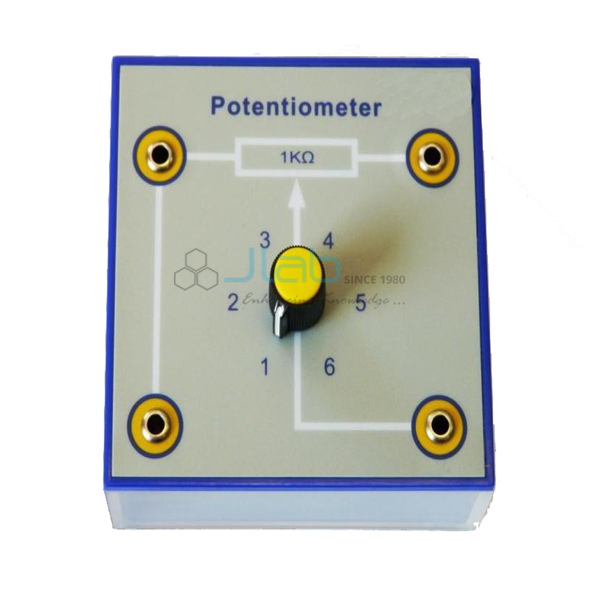

The Potentio meter Module (SKU JA-EE-7472) is a rotary linear potentiometer mounted on a channel box, giving students an adjustable resistance or voltage divider with 4 mm socket connections. This potentiometer module with 4 mm sockets is offered in a choice of values and is protected by a fast-blow fuse against wrong connection, which suits group work in school and college laboratories. JaincoLab supplies it for physics and electronics practicals.
Specifications
The Potentio meter Module consists of a rotary linear potentiometer on a channel box with connections brought out to 4 mm sockets and a fast-blow fuse for protection against wrong connection; the resistance value is selected from a choice of values when ordering.
| Product | Potentio meter Module |
| SKU | JA-EE-7472 |
| Type | Rotary linear potentiometer |
| Mounting | Channel box |
| Connections | 4 mm sockets |
| Protection | Fast-blow fuse against wrong connection |
| Values | Choice of values |
Applications of the potentiometer module with 4 mm sockets
Students use the module as a bench potential divider and variable resistor: turning the spindle changes the output voltage or the resistance in the circuit, which makes it useful for voltage control, sensor adjustment and simple electronics set-ups.
- Demonstrating a potential divider with a voltmeter across the output
- Controlling the voltage supplied to a small load
- Adjusting the threshold of LDR or thermistor sensing circuits
- Variable resistance in current-voltage investigations
- Building modular circuits with 4 mm plug leads
Scope of supply and ordering
The listing covers one potentiometer module on its channel box with 4 mm sockets and fuse protection, in the value chosen when ordering. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for the quantity, values and delivery destination. JaincoLab supplies potentiometer modules singly or as class sets for schools, colleges and education projects.
Frequently asked questions
Which values can be ordered?
The module is available in a choice of values; the value you need is confirmed on the quotation.
What protects the module from wrong connection?
A fast-blow fuse.
Are carbon track and wire wound versions listed?
Yes. Carbon track and wire wound potentiometer modules are listed separately.
