My Temp Mini CO2 Digital Incubator
Product Code : JA-LE-8194

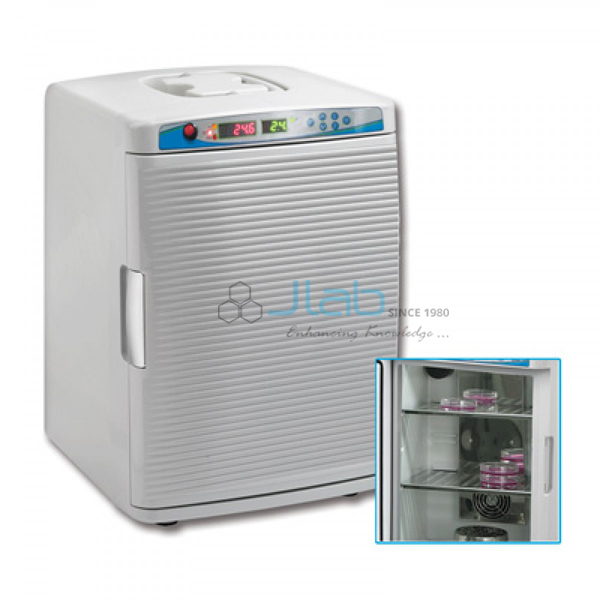

The My Temp Mini CO2 Digital Incubator (SKU JA-LE-8194) is a compact digital CO2 incubator with a 20 litre chamber, only about 13 inches wide, so it fits inside a biological safety cabinet or on a small bench. Temperature and CO2 level are set digitally and shown in real time on an LED panel, and the CO2 is read by a dual-beam infrared sensor. It is supplied by JaincoLab.
Specifications
Performance and size values listed for the incubator:
| Product | My Temp Mini CO2 Digital Incubator |
| SKU | JA-LE-8194 |
| Chamber capacity | 20 L (0.7 cu ft); takes flasks and bottles up to 2 L |
| Temperature range | Room temperature -10°C to 55°C |
| Temperature accuracy / uniformity | 0.25°C / 0.5°C (at 37°C) |
| Temperature setting step | 0.1°C |
| CO2 range | 0 to 20% |
| CO2 sensor and accuracy | Dual-beam infrared; 0.1% (at 5%) |
| Humidity | 70 to 80% with the included stainless steel reservoir |
| Shelves | Two removable, perforated stainless steel |
| Exterior (w x d x h) | 33.5 x 37 x 47.5 cm (13.2 x 14.5 x 18.7 in) |
| Interior (w x d x h) | 26 x 23.5 x 32.5 cm |
| Weight | 6.5 kg |
| Electrical | 100 to 240 V, 50-60 Hz; 12 V vehicle power adapter included |
Scope of supply and ordering
Each incubator comes with its two perforated shelves, the humidity reservoir and the 12 V vehicle adapter; please give the number of units and the delivery address so the quotation can confirm packing and lead time.
Frequently asked questions
How is the CO2 level measured and monitored?
A dual-beam infrared sensor monitors the CO2 continuously, and audible and visual alarms are triggered if the level drops.
What happens to the temperature after a power cut?
Once power is disconnected, the thick insulation keeps the chamber within 10% of the set temperature for up to 1 hour.
Can the incubator run away from mains power?
Yes, a 12 V vehicle power adapter is included for running it in a car or boat, for example when moving cells.
Can the readings be calibrated in the lab?
The control panel has a "Cal" function for in-lab calibration of temperature or CO2.
