My Block Dry Bath
Product Code : JA-LE-8184

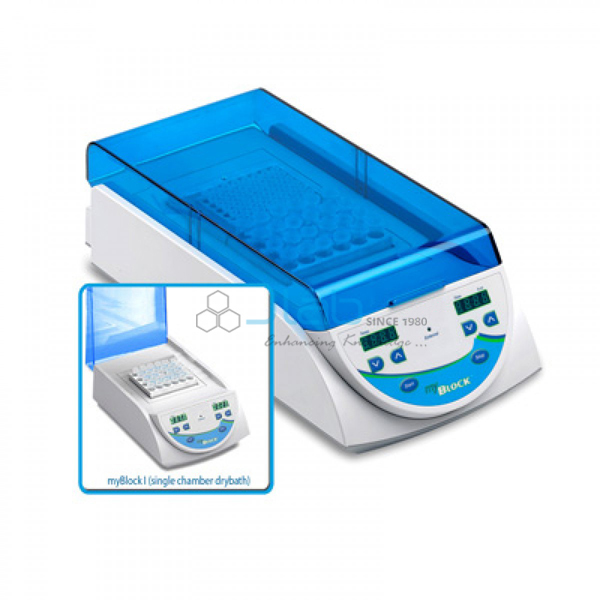

The My Block Dry Bath (SKU JA-LE-8184) is a digital dry bath with lid, made in single and dual block models. Its transparent, hinged lid keeps a layer of warm air over the block, which improves uniformity, limits temperature layering and cuts heat loss. Microprocessor control gives timed or continuous heating from ambient +5 to 105°C. It is supplied by JaincoLab.
Specifications
Control values are common to both models:
| Product | My Block Dry Bath |
| SKU | JA-LE-8184 |
| Temperature range | Ambient +5 to 105°C |
| Accuracy / uniformity | +/-0.3°C / +/-0.2°C |
| Setting step | 0.1°C |
| Timer | Off, or 1 min to 99 h 59 min |
| Blocks | Flip-over universal blocks: 0.5-2.0 ml tubes, or 0.2 ml tubes, PCR strips and (dual model) a PCR plate; other blocks for tubes up to 50 ml |
| Lid | Transparent, hinged; opens to the rear or lifts off for tall tubes |
| Optional probe | External feedback probe placed inside a sample tube |
| Size (w x d x h) | 18 x 25 x 13 cm or 16 x 36.5 x 13 cm, by model |
| Weight | 4 to 4.5 kg, by model |
| Electrical | 120 or 230 V, 50-60 Hz |
Scope of supply and ordering
State the single or dual block model and whether you want the flip-over blocks, other tube blocks or the sample probe; quantity, packing and lead time follow on the quotation.
Frequently asked questions
What does the transparent lid do?
It holds a warm air layer over the block, which improves uniformity, reduces temperature stratification and reduces heat loss; it lifts off for taller tubes.
Can the actual sample temperature be controlled?
Yes, with the optional external probe placed inside a sample tube the unit controls and displays the real sample temperature.
Can the dual model take a PCR plate?
Yes, the flip-over block of the dual block model accepts a PCR plate as well as 0.2 ml tubes and strips.
