Multiple Stirred Autoclave System
Product Code : JA-MS-6675

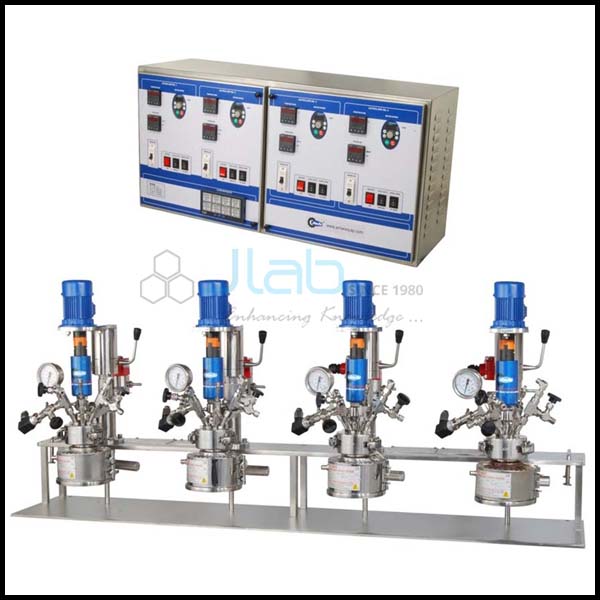

The Multiple Stirred Autoclave System (SKU JA-MS-6675) is a parallel autoclave reactor system of 4 or 6 stirred pressure autoclaves on one mounting, run from a common control panel so that reactions can be carried out side by side with different parameters and compared. It is supplied by JaincoLab for research laboratories, pilot plants and process laboratories, with each vessel offered from 50 ml to 5 litres.
Specifications
The table gives the standard build and the options listed in the product data; vessel size, material and pressure rating for an order are fixed on the quotation.
| Product | Multiple Stirred Autoclave System |
| SKU | JA-MS-6675 |
| Configuration | 4 or 6 parallel autoclaves on one mounting with a common control panel |
| Vessel capacity | 50 ml to 5 litres |
| Material of construction | SS-316 standard; SS-316L, Hastelloy B, Hastelloy C, Monel, nickel, Inconel or titanium optional |
| Maximum working pressure | 100 kg/cm² (1500 psig) standard; up to 350 kg/cm² (5000 psig) optional |
| Maximum working temperature | 250 °C (482 °F) standard; up to 500 °C (932 °F) optional |
| Stirrer speed | 50 to 1450 rpm, infinitely variable; up to 3000 rpm optional |
| Stirrer | Pitch blade turbine; hollow-shaft gas-entrainment impeller for hydrogenation, propeller, anchor or helix optional |
| Drive | DC motor and drive; flameproof AC motor with variable frequency drive optional |
| Shaft sealing | Stuffing box gland packing with cones and O-rings; magnetic drive coupling optional |
| Heating | Ceramic heating mantle with insulation; SS-304 oil-heating jacket or external cast aluminium heater with internal cooling coil optional |
| Gasket and closure | PTFE gasket with split-clamp quick-opening closure; Grafoil above 300 °C |
| Bushes | PEEK or Grafoil |
| Temperature control | SS control panel with microprocessor PID controller and alarm; PC control with monitoring, plotting and data logging optional |
| Data handling | Data acquisition and mass flow controllers; common PC or HMI touch screen for all autoclaves optional |
| Mounting | SS trolley or SS table top |
| Standard fittings | Pressure safety valve, vent valve, rupture disc, internal cooling coil, thermowell, gas inlet sparger, liquid sampler |
| Optional fittings | Ball valve for powder or liquid inlet, pressure release valve, flush bottom valve, digital pressure indicator with alarm and solenoid valve |
Applications of the parallel autoclave reactor system
Running the same reaction in several vessels at once makes the system suited to comparative and screening work.
- Reactions such as alkylation, amination, bromination, carboxylation, oxidation and ozonisation
- High-throughput catalyst screening and heterogeneous catalytic reactions
- Work at high pressure, vacuum and temperature, including corrosion studies and reaction calorimetry
- Small-batch production for quality control, process improvement and synthesis
Scope of supply and ordering
Each system is quoted as 4 or 6 autoclaves with the control panel, mounting and standard fittings; vessel volume, material, pressure and temperature rating, drive and chosen options are fixed on the quotation together with packing and lead time.
Frequently asked questions
Can each autoclave run under different conditions?
Yes. The product data states that simultaneous reactions can be run in each reactor with different parameters, so the results can be compared.
What vessel sizes and materials are offered?
Vessels are listed from 50 ml to 5 litres, in SS-316 as standard, with SS-316L, Hastelloy B or C, Monel, nickel, Inconel or titanium as options.
What pressure and temperature can the system reach?
The standard build is rated to 100 kg/cm² (1500 psig) and 250 °C; options go up to 350 kg/cm² (5000 psig) and 500 °C.
