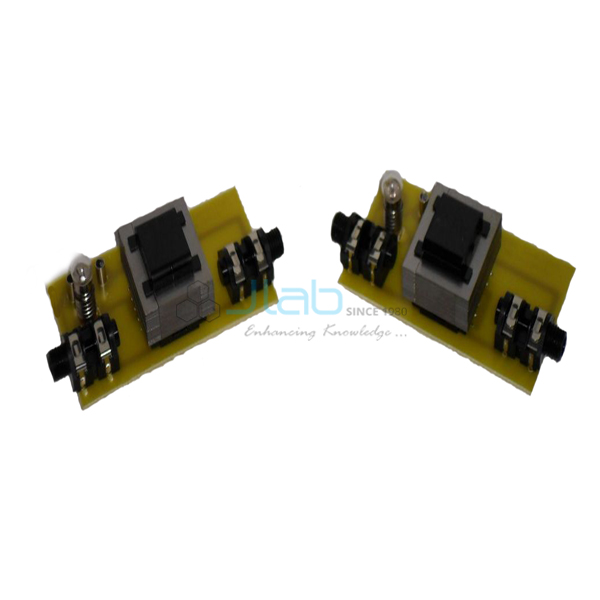

Mini National Grid Simulation Kit
Product Code : JA-EE-7459
The Mini National Grid Simulation Kit (SKU JA-EE-7459) is a small-scale transmission system that pupils use to investigate why power is sent at a stepped-up voltage. Supplied by JaincoLab, this national grid simulation kit uses two printed circuit boards fitted with step-up and step-down transformers, 2.5 V MES lamps and a 1.2 m set of transmission cables, and it runs from a 2 V AC power source connected with two 4 mm plugged leads.
Specifications
The system comprises two printed circuit boards with step-up and step-down transformers, 4 mm low-voltage connectors, jack sockets for the high-voltage side, 2.5 V MES lamps and a set of HT leads, plus a 1.2 m set of transmission cables; it needs only a 2 V AC source and two 4 mm plugged leads.
| Product | Mini National Grid Simulation Kit |
| SKU | JA-EE-7459 |
| Circuit boards | Two printed circuit boards with step-up and step-down transformers |
| Low-voltage connections | 4 mm connectors |
| High-voltage side | Jack sockets with a set of HT leads |
| Lamps | 2.5 V MES lamps |
| Transmission cables | 1.2 m set |
| Power requirement | 2 V AC source and two 4 mm plugged leads (not part of the listing) |
| Documentation | Full instructions |
Investigations with the national grid simulation kit
Pupils use the kit to compare transmitting power directly at low voltage with stepping the voltage up for transmission and down again at the far end, and to see how transformers make long-distance transmission practical.
- Investigating the effect of stepping up the voltage to transmit power, as in the National Grid
- Seeing how step-up and step-down transformers are used at each end of a transmission line
- Comparing the lamp at the receiving end with and without voltage step-up
- Small-group practical work on transformers and power transmission in secondary physics
Scope of supply and ordering
The kit comes complete with the two circuit boards, 2.5 V MES lamps, HT leads, a 1.2 m set of transmission cables and full instructions. The 2 V AC power source and the two 4 mm plugged leads are not part of the listing. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of kits and the delivery destination. Kits for group practicals, bulk school orders and tender quantities can be quoted, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What power supply does the kit need?
A 2 V AC power source connected with two 4 mm plugged leads; neither is part of the listing.
What does the kit contain?
Two printed circuit boards fitted with step-up and step-down transformers, 4 mm low-voltage connectors, jack sockets for the high-voltage side, 2.5 V MES lamps, a set of HT leads, a 1.2 m set of transmission cables and full instructions.
How does it differ from the National Grid Kit?
The mini kit is a pupil-scale system built on circuit boards with transformers and run from 2 V AC, while the National Grid Kit is a demonstration set with transmit and receive boxes and SBC lamps.
