Maxwell Inductance Bridge
Product Code : JA-SI-8073

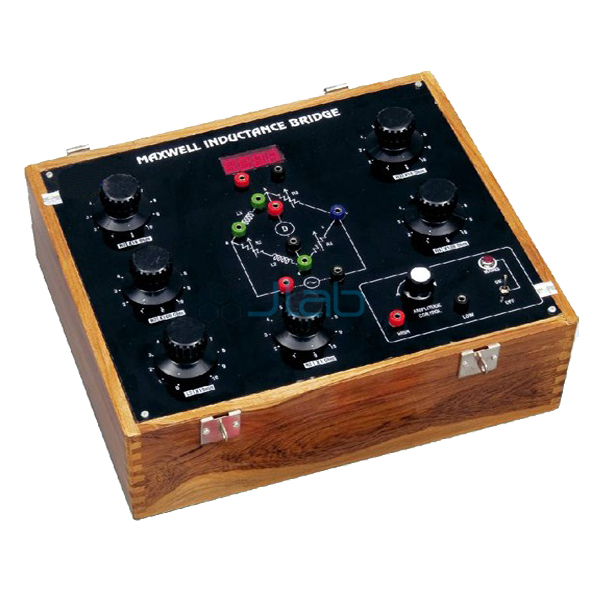

The Maxwell Inductance Bridge (SKU JA-SI-8073) measures an unknown inductance by comparing it with a standard variable inductance, the L2 decade of x10 mH, together with a resistance decade R2 of x1 ohm. The ratio arms R3 and R4 are two-decade dials of x10 and x100 ohm. A 1 kHz sine source with two output sockets and an amplitude indicating lamp and a digital null detector are built into the board, and four unknown inductances are supplied.
Specifications
Source, detector and arm values from the product data:
| Product | Maxwell Inductance Bridge |
| SKU | JA-SI-8073 |
| AC source | 1 kHz sine wave, two output sockets, amplitude indicating lamp |
| Detector | Built-in null detector, digital display |
| R3, R4 | Two-decade dials, x10 and x100 ohm |
| L2 | Decade dial, x10 mH |
| R2 | Decade dial, x1 ohm |
| Unknowns | Four, supplied with the instrument |
| Connections | 4 mm sockets, spread-out layout |
Experiments on the Maxwell bridge
- Measuring the four unknown inductances against the L2 standard
- Finding the resistance of each unknown coil from the R2 balance
- Comparing results with the Anderson and Hay bridges
Scope of supply and ordering
Supplied complete with source, detector and four unknowns on one board, so no separate oscillator or galvanometer is needed. Leads, quantities and packing are confirmed on the quotation.
Frequently asked questions
What standard does the Maxwell bridge compare against?
A variable standard inductance, the L2 decade of x10 mH.
Are unknown inductances supplied?
Yes, four unknowns are supplied with the instrument.
Is a source built in?
Yes, a 1 kHz sine wave source with an amplitude indicating lamp.
Which dials form the ratio arms?
R3 and R4, each a two-decade dial of x10 and x100 ohm.
