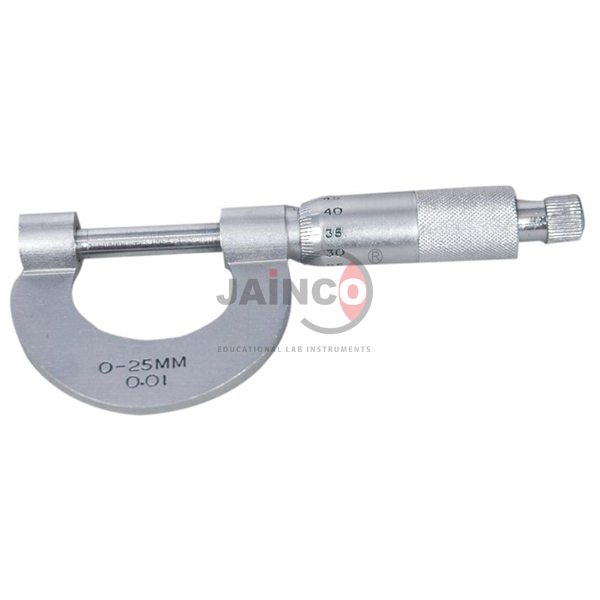

Lock Type Micrometer Screw Gauge
Product Code : JA-M-7882
The Lock Type Micrometer Screw Gauge (SKU JA-M-7882) measures small lengths, diameters and thicknesses to 0.01 mm in school and college physics practicals. It has a range of 0 to 25 mm, a nickel plated brass body, a ratchet top for consistent measuring pressure and a machined stainless steel rod, and its lock holds the spindle while a reading is recorded. This micrometer screw gauge for 0-25 mm work is manufactured in India by JaincoLab and supplied in a plastic case.
Specifications
The screw gauge reads from 0 to 25 mm with a precision of 0.01 mm (1/100 mm) and is built from nickel plated brass with a ratchet top and a machined stainless steel rod, packed in a plastic case.
| Product | Lock Type Micrometer Screw Gauge |
| SKU | JA-M-7882 |
| Range | 0-25 mm |
| Precision | 0.01 mm (1/100 mm) |
| Material | Nickel plated brass |
| Rod | Machined stainless steel |
| Features | Lock type, ratchet top |
| Case | Plastic |
Applications of the 0-25 mm micrometer screw gauge
The micrometer screw gauge is used wherever a length below 25 mm must be measured more finely than a vernier calliper allows, which makes it a standard instrument in senior-secondary physics practicals and first-year undergraduate laboratories.
- Measuring the diameter of a given wire, as in CBSE and ICSE practicals
- Finding the thickness of a sheet of glass, metal or paper
- Measuring wire diameters for resistivity and Young's modulus experiments
- Measuring small balls and rods for volume and density work
- Teaching pitch, least count and zero error of a screw instrument
Scope of supply and ordering
Each unit is one lock type micrometer screw gauge, 0-25 mm, supplied in a plastic case. Accessories, spares and quantities are confirmed on the quotation.
MOQ, packing and lead time are confirmed for each enquiry on the quotation, based on the quantity of gauges and the delivery destination. JaincoLab supplies class sets for schools, bulk quantities for colleges and education projects, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the range and precision of the screw gauge?
It measures from 0 to 25 mm with a precision of 0.01 mm (1/100 mm).
What is the gauge made of?
It is made of nickel plated brass with a ratchet top and a machined stainless steel rod.
What does lock type mean?
The gauge has a lock so that the spindle can be held in position while the reading is taken and recorded.
How is it supplied?
Each gauge is supplied in a plastic case.
