Leak Test Apparatus
Product Code : JA-LTA-2224

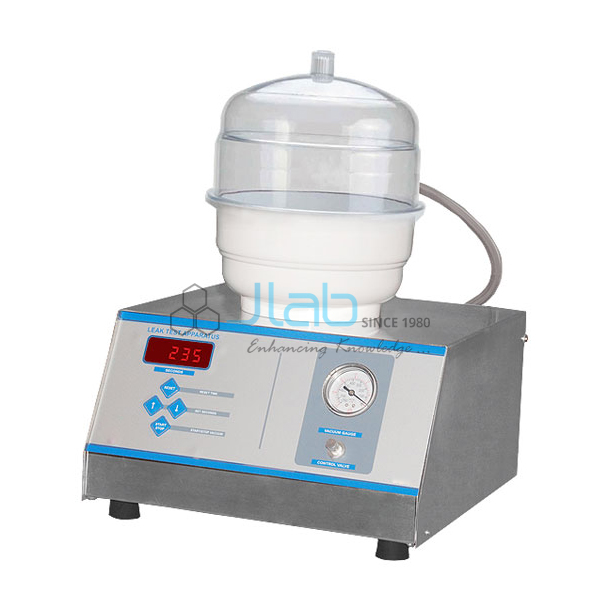

The Leak Test Apparatus (SKU JA-LTA-2224) checks the seals of strips, blisters and sachets containing tablets, granules and liquids for food, drug and chemical packing. Samples go into a polycarbonate desiccator, a built-in pump draws a vacuum that is held for a preset time, and packs that keep their shape show sound sealing. This leak test apparatus is supplied by JaincoLab.
Specifications
The unit draws up to 22 in Hg, stabilises at a set value below 400 mm Hg to ±10 mm Hg within 30 seconds, and holds the vacuum for 15 to 9999 seconds, shown on a 4-digit red LED display.
| Product | Leak Test Apparatus |
| SKU | JA-LTA-2224 |
| Vacuum range | Up to 22 in Hg |
| Vacuum setting | Stabilises at a set value below 400 mm Hg, ±10 mm Hg within 30 s |
| Hold time | 15 to 9999 s |
| Desiccator | Polycarbonate, 6, 10 or 12 in (specify on order) |
| Vacuum source | Built-in compact vacuum pump, front-panel gauge and control valve |
| Display | 4-digit red 7-segment LED |
| Keyboard | Soft-touch keys |
| Power | 230 V ±10% AC, 50 Hz, 10 W |
| Weight | 13 kg approx. |
| Accessories listed | Main apparatus with vacuum pump, polycarbonate desiccator with connecting tubes, operation manual |
Applications of the leak test apparatus
A vacuum test followed by immersion in a coloured dye solution, normally methylene blue, shows any pack whose seal lets the dye in, so faulty sealing is found before a batch leaves the line.
- Seal integrity checks on tablet and capsule strips and blisters
- Leak testing of sachets holding granules and liquids
- Packaging quality control in food, drug and chemical plants
- Packaging evaluation practicals in pharmacy colleges
Scope of supply and ordering
The listing covers the leak test apparatus with built-in vacuum pump, a polycarbonate desiccator in the size ordered with connecting tubes, and the operation manual. Dye solution is not part of the listing. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the desiccator size, number of units and the delivery destination. JaincoLab supplies single units and sets for pharmaceutical laboratories and pharmacy colleges.
Frequently asked questions
Which pack types can be tested?
Strips, blisters and sachets containing tablets, granules or liquids.
Which desiccator sizes are offered?
6, 10 and 12 in polycarbonate desiccators; the size is specified on the order.
How long can the vacuum be held?
The hold time is programmable from 15 to 9999 seconds.
