Laminar Air Flows
Product Code : JA-CAE-6555

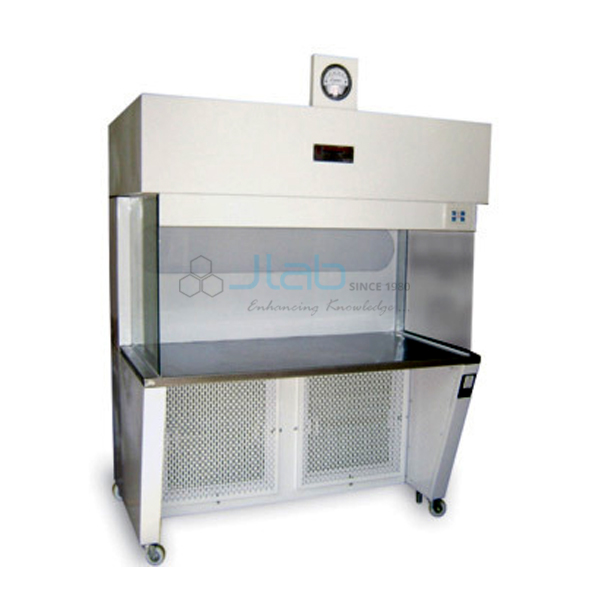

The Laminar Air Flows listing (SKU JA-CAE-6555) covers vertical and horizontal laminar air flow cabinets that keep a one-way stream of HEPA-filtered air over the work area to keep dust and airborne particles off the work. JaincoLab makes these laminar air flow cabinets in five working widths from 2 to 8 ft for microbiology, tissue culture, pharmacy and research laboratories.
Specifications
Standard fittings are an SS or MS cabinet, HEPA filter, blower, light, air/gas cock and power cord, with a stainless steel work table and transparent front door; working sizes run from 2 x 2 x 2 ft to 8 x 2 x 2 ft with one or two HEPA filters of 6 in depth.
| Product | Laminar Air Flows |
| SKU | JA-CAE-6555 |
| Models | Vertical flow; horizontal flow |
| Standard fittings | SS or MS cabinet, HEPA filter, blower, light, air/gas cock, power cord |
| Work table | Stainless steel |
| Front | Transparent front door |
| Working sizes | 2 x 2 x 2, 3 x 2 x 2, 4 x 2 x 2, 6 x 2 x 2 and 8 x 2 x 2 ft |
| HEPA filters | 2 x 2 ft, 3 x 2 ft, 4 x 2 ft (one filter); 3 x 2 ft or 4 x 2 ft (two filters) for 6 and 8 ft; 6 in deep |
| Options | Digital air-flow display, pressure gauges, Magnehelic gauge, UV germicidal tube, electronic filter choke alarm, fluorescent light, hour meter for UV |
Applications of the laminar air flow cabinet
Vertical flow suits work where air should not blow at the operator and bench space is limited, while horizontal flow gives a deeper work area; the choice depends on the application, and both keep the work under clean filtered air.
- Plating, sub-culturing and media work in microbiology laboratories
- Plant and cell tissue culture
- Aseptic preparation in pharmacy laboratories
- Clean assembly and inspection of small parts
Scope of supply and ordering
The listing covers the laminar air flow cabinet in the model and working size ordered, with the standard fittings above. The optional displays, gauges, UV tube, alarm and hour meter are quoted separately. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the model, size, options, number of cabinets and the delivery destination. JaincoLab supplies single cabinets and batches for colleges, research institutes and institutional orders.
Frequently asked questions
Which models are available?
Vertical and horizontal laminar air flow cabinets.
Which working sizes are listed?
2 x 2 x 2, 3 x 2 x 2, 4 x 2 x 2, 6 x 2 x 2 and 8 x 2 x 2 ft.
Is a UV lamp included?
A UV germicidal tube with hour meter is optional, as are gauges and an air-flow display.
Related products
Biosafety cabinets, pass boxes and booths are listed in the JaincoLab clean air equipment range.
Request a quote
To order Laminar Air Flow cabinets, send the model, size, options, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
