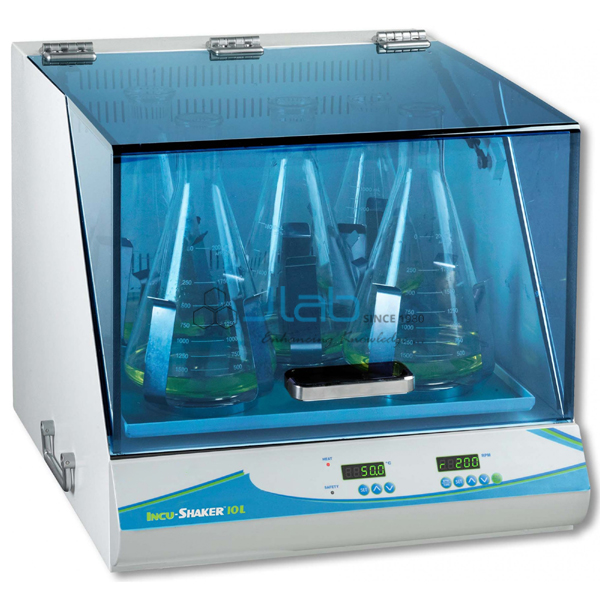

Incu Shaker 10L and 10LR
Product Code : JA-LE-8200
The Incu Shaker 10L and 10LR (SKU JA-LE-8200) is a large incubator shaker built for heavy loads and continuous running. It shakes from 30 to 300 rpm on a 19 mm orbit over a 45 x 45 cm platform, driven by a brushless induction motor. The 10L model heats from room temperature +5 to 60°C, and the 10LR adds refrigeration to reach room temperature -15°C. It is supplied by JaincoLab.
Specifications
Figures for both models are listed below.
| Product | Incu Shaker 10L and 10LR |
| SKU | JA-LE-8200 |
| Speed | Variable, 30 to 300 rpm, 1 rpm steps |
| Orbit | 19 mm (3/4 in) |
| Temperature range, 10L | Room temp. +5 to 60°C |
| Temperature range, 10LR | Room temp. -15 to 60°C |
| Temperature step / accuracy / uniformity | 0.1°C / +/-0.1°C / +/-0.25°C |
| Platform | 45 x 45 cm (17.8 x 17.8 in), rubber mat included |
| Timer | 1 min to 48 h, or continuous |
| Size, 10L (w x d x h) | 51 x 65 x 47 cm; 55 kg |
| Size, 10LR (w x d x h) | 51 x 79 x 56 cm; 78 kg |
| Height with lid open | 96.5 cm |
| Electrical | 115 or 230 V, 50-60 Hz, 450 W |
What the Incu Shaker 10L is used for
The platform options decide the vessels it can carry:
- Tissue culture flasks, Petri dishes and staining trays on the standard rubber mat platform
- Erlenmeyer flasks and test tube racks on the optional clamp platform, with magnetic attachment for quick clamp changes
- Long, continuous shaking runs at a controlled temperature
Scope of supply and ordering
The standard supply is the shaker (10L or 10LR) with its rubber mat platform; the clamp platform is optional, so name it and the flask sizes when you ask for a quotation covering packing and lead time.
Frequently asked questions
What is the difference between the 10L and the 10LR?
The 10L heats from room temperature +5 to 60°C; the 10LR is refrigerated and runs from room temperature -15 to 60°C, in a larger 51 x 79 x 56 cm cabinet.
Which platform comes with the shaker?
A rubber mat platform for flat vessels is standard; a clamp platform for Erlenmeyer flasks and test tube racks is available.
How long can it run?
The timer runs from 1 minute to 48 hours, or the shaker can run continuously.
Related products
- Incu Shaker Mini with Flat Mat Platform
- Shaking Water Bath with Universal Spring Platform
- My Temp Heating and Cooling Incubator
- Multi Therm Cool Heat Shaker
Shakers and incubators are grouped in our laboratory equipment range.
Request a quote
Tell us whether you need the Incu Shaker 10L or 10LR, and the platform, on our contact page. For tender or project supply, see our tenders page.
