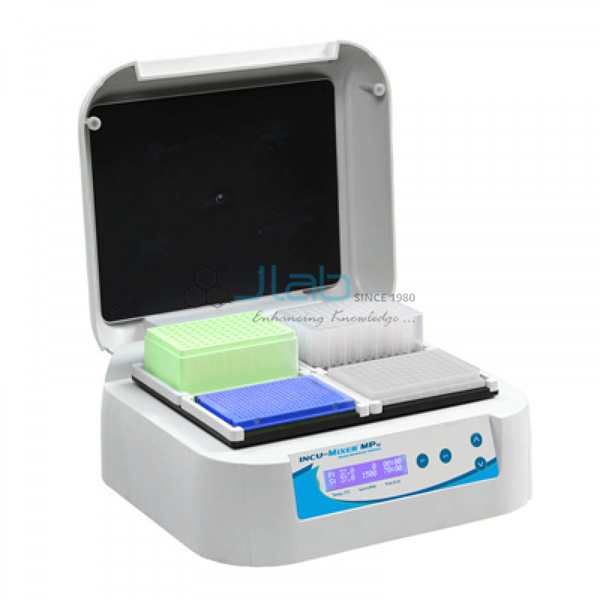

Incu Mixer MP Incubated Plate Vortexer
Product Code : JA-LE-8195
The Incu Mixer MP Incubated Plate Vortexer (SKU JA-LE-8195) is an incubated microplate shaker that mixes and warms plates at the same time. A 2 mm orbit gives thorough mixing without splashing, and heat comes from both the base and the lid, which evens out the sample temperature and limits evaporation and condensation. Speed, time and temperature are set independently. It is supplied by JaincoLab.
Specifications
The 2-plate and 4-plate versions are specified as follows.
| Product | Incu Mixer MP Incubated Plate Vortexer |
| SKU | JA-LE-8195 |
| Temperature range | Ambient +5 to 70°C |
| Temperature step / accuracy / uniformity | 0.1°C / +/-0.2°C / +/-0.5°C |
| Orbit | 2 mm |
| Mixing speed | 100 to 1500 rpm (4-plate); 100 to 1200 rpm (2-plate); 10 rpm steps |
| Plates | Standard plates; maximum plate height listed as 46 mm / 20 mm |
| Timer | 1 min to 99 h 99 min, or continuous |
| Size (w x d x h) | 32 x 35 x 18.5 cm (4-plate); 28 x 27 x 14 cm (2-plate) |
| Weight | 8 kg |
| Electrical | 115 or 230 V, 50-60 Hz, 600 W (4-plate); 100-240 V, 500 W (2-plate) |
Applications of the incubated microplate shaker
Independent time, temperature and speed let it work as a plate incubator, a vortexer or both, for:
- Immunochemical reactions in microplates
- Enzyme and protein analysis
- Microarray analysis
Scope of supply and ordering
The vortexer is quoted in its 2-plate or 4-plate version; say which one and how many units you need, and packing and lead time are confirmed on the quotation.
Frequently asked questions
Why is the lid heated?
Heating from the lid as well as the base keeps the temperature uniform through the sample and minimises evaporation and condensation.
What is the difference between the 2-plate and 4-plate versions?
The 4-plate version mixes at 100 to 1500 rpm and the 2-plate at 100 to 1200 rpm; the 2-plate unit is smaller at 28 x 27 x 14 cm.
Can it be used as an incubator only?
Yes, time, temperature and speed are set independently, so it can run as an incubator, a vortexer or both together.
