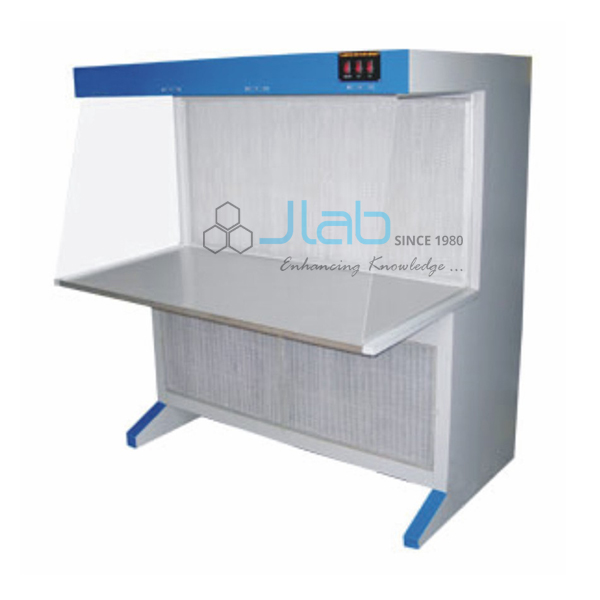

Horizontal Laminar Air Flow (Microprocessor Control)
Product Code : JA-CAB-3825
The Horizontal Laminar Air Flow (Microprocessor Control), SKU JA-CAB-3825, is a clean bench that blows HEPA-filtered air horizontally across the work surface towards the operator, keeping the working zone free of airborne particles for tissue culture, media preparation and other clean work. This horizontal laminar air flow bench draws air through a pre-filter and HEPA filter, has a stainless steel work table and plexiglass side panels and doors, and is controlled by a microprocessor. JaincoLab manufactures it for research, college and industrial laboratories.
Specifications
Air passes through a pre-filter and a HEPA filter rated, as listed, at 99.99% with cold DOP and 99.97% with hot DOP for particles of 0.3 micron and larger; the cabinet is steel-laminated board, electro-galvanised steel or stainless steel with a stainless steel work table.
| Product | Horizontal Laminar Air Flow (Microprocessor Control) |
| SKU | JA-CAB-3825 |
| Air flow | Horizontal laminar flow |
| Control | Microprocessor |
| Filtration | Pre-filter and HEPA filter |
| HEPA efficiency (as listed) | 99.99% cold DOP, 99.97% hot DOP, particles 0.3 micron and larger |
| Cabinet | Wooden board laminated with powder-coated CRC steel, electro-galvanised steel or stainless steel |
| Work table | Stainless steel sheet |
| Side panels and front doors | Thick transparent plexiglass |
| Motor | Heavy duty, low noise |
| Lighting | Fluorescent |
Applications of the horizontal laminar air flow bench
Horizontal flow sweeps particles away from the work and out of the open front, which suits product-protection work such as media plating and plant tissue culture.
- Plant tissue culture and micropropagation
- Pouring plates and preparing sterile media in microbiology laboratories
- Pharmacy and medical science work that needs a clean zone
- Inspection and assembly of precision electronic parts
Scope of supply and ordering
The listing covers the bench with microprocessor control, pre-filter, HEPA filter, stainless steel work table, plexiglass side panels and front doors, motor and fluorescent lighting, in the cabinet material chosen. Working-area size is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size, cabinet material and number of units and the delivery destination. Single benches for laboratories and bulk quantities for institutional and tender orders are supplied.
Frequently asked questions
What filters are fitted?
A pre-filter and a HEPA filter; the listed HEPA rating is 99.99% with cold DOP and 99.97% with hot DOP for particles of 0.3 micron and larger.
Which cabinet materials are available?
Powder-coated steel-laminated board, electro-galvanised steel or stainless steel.
How is the working area lit?
By fluorescent lighting fitted to the unit.
Related products
- Vertical Laminar Air Flow Cabinet
- Vertical Laminar Air Flow Cabinet (Microprocessor Controlled)
- Biological Safety Cabinet
- Bio Safe Biological Safety Cabinet
This model is listed in the JaincoLab clean air benches range.
Request a quote
To order the Horizontal Laminar Air Flow (Microprocessor Control), send the working-area size, cabinet material, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CAB-3825. Tender and project enquiries can be sent through the tenders page.
