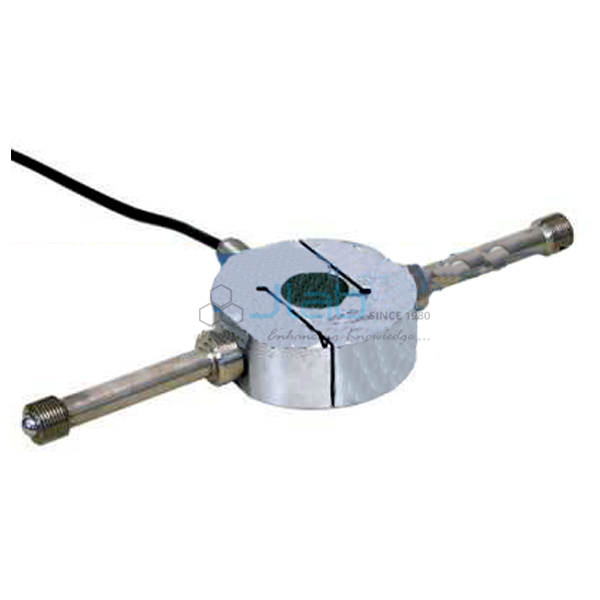

HI-Load 5000 (5kN Loading Device)
.jpg)
Product Code : JA-MI-4923
The HI-Load 5000, a 5 kN loading device (SKU JA-MI-4923), applies load through a proving ring using a fine-thread screw jack with 75 mm travel. The ring deflection is read by a digital dial gauge that shows the load directly in decanewtons, and a zero-setting switch removes the effect of self weight and the initial set-up of an experiment. The ring works in compression, and a loading yoke is provided so that tension loads can also be applied. It is supplied by JaincoLab for structures laboratories and student projects.
Specifications
The device applies up to 5 kN through a lightweight proving ring driven by a fine-thread screw jack with 75 mm travel, with direct digital read-out of load in decanewtons, a zero-setting switch and a loading yoke for tension.
| Product | HI-Load 5000 (5kN Loading Device) |
| SKU | JA-MI-4923 |
| Load rating | 5 kN |
| Drive | Screw jack with fine thread |
| Travel | 75 mm |
| Load measurement | Proving ring with digital dial gauge, reading in decanewtons |
| Zeroing | Zero-setting switch to remove self weight and set-up effects |
| Loading modes | Compression; tension with the loading yoke provided |
| Use | Replaces cast iron masses in loading experiments |
Applications of the 5 kN loading device
A screw-jack loading device lets students apply large, controlled loads in any direction and read the true load directly, instead of stacking heavy cast iron weights.
- Applying loads to beams, frames and trusses in structures experiments
- Compression and tension tests on model members
- Student projects needing large, accurate loads in any direction
- Replacing cast iron weight hangers in loading experiments
Scope of supply and ordering
The listing covers the loading device with proving ring, screw jack, digital dial gauge read-out and loading yoke. The test frame is a separate item. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. Single units and complete structures laboratory sets for institutions and tenders are supplied.
Frequently asked questions
What load can it apply?
Up to 5 kN, through a proving ring driven by a screw jack with 75 mm travel.
How is the load read?
A digital dial gauge on the proving ring shows the load directly in decanewtons.
Can it apply tension as well as compression?
Yes. The ring works in compression, and a loading yoke is provided for tension loads.
Related products
This device is listed in the JaincoLab measuring instruments range.
Request a quote
To order the HI-Load 5000 (5kN Loading Device), send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-MI-4923. Institutions and contractors buying under a tender can also reach us via the tenders page.
