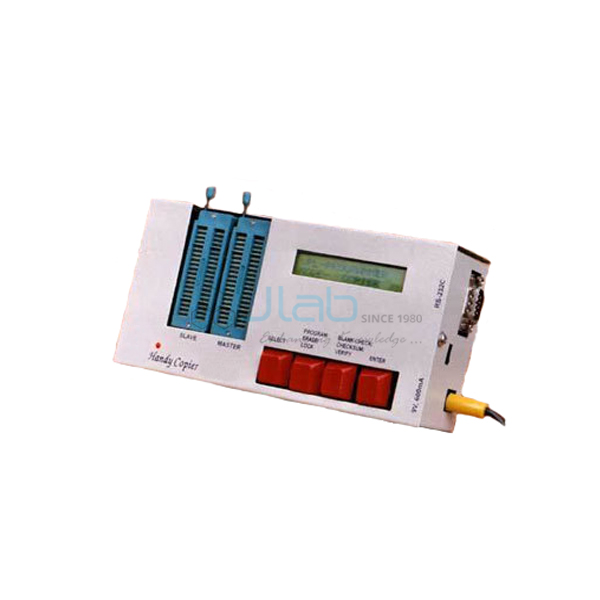

Handy Copier
Product Code : JA-ELA-5437
The Handy Copier (SKU JA-ELA-5437) is a compact device supplied by JaincoLab for copying programmed memory chips from a master to a slave. It handles EPROM, EEPROM, flash memory and microcontrollers, and user-friendly menu-driven software links it to a PC. Four keys on the unit perform program, verify, blank check, lock, erase, checksum and select, with a 16 x 2 backlit LCD showing each step.
Specifications
The copier has a 16 x 2 backlit LCD and four keys, runs on +9 V at 600 mA, and its device support can be updated through the internet.
| Product | Handy Copier |
| SKU | JA-ELA-5437 |
| Function | Copying from master to slave |
| Devices | EPROM, EEPROM, flash memory, microcontrollers |
| Display | 16 x 2 LCD, backlit |
| Keys | 4: program, verify, blank check, lock, erase, checksum, select |
| PC interface | Menu-driven software |
| Supply | +9 V, 600 mA |
| Updates | Device update through the internet |
| Size | Compact |
Uses of the handy copier
A standalone copier lets one programmed master chip be duplicated for several training boards without reprogramming each chip from a PC.
- Duplicating programmed EPROMs and microcontrollers in microprocessor and embedded systems labs
- Blank checking and erasing chips before reuse
- Verifying copies against the master by checksum
Scope of supply and ordering
The listing covers the handy copier supplied by JaincoLab; the power adapter, PC software, quantity, packing and lead time are confirmed on the quotation.
Frequently asked questions
Which devices can it copy?
EPROM, EEPROM, flash memory and microcontrollers, from a master to a slave.
Can it be used with a PC?
Yes. Menu-driven software lets it interface with a PC.
What power does it need?
+9 V at 600 mA.
Related products
Electronics lab items are listed in the educational laboratory apparatus range.
Request a quote
For the Handy Copier (JA-ELA-5437), send your quantity through our contact page for a price. Tender and project enquiries can be sent through the tenders page.
