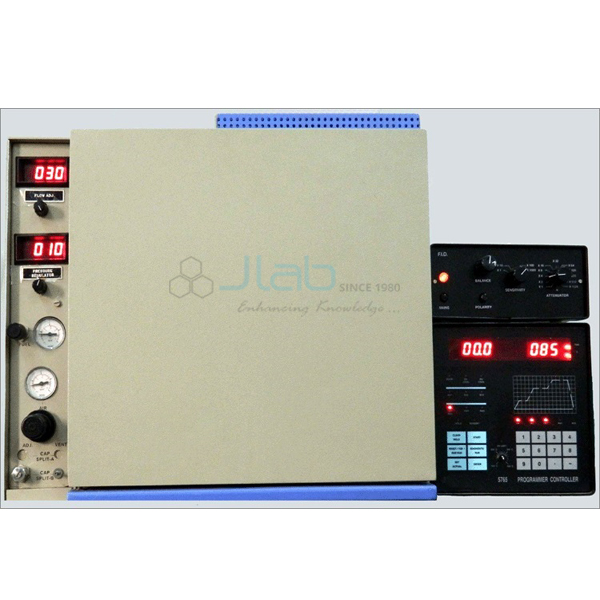

Gas Chromatography With Electronic Pressure & Flow Control
Product Code : JA-PLE-6449
The Gas Chromatography with Electronic Pressure & Flow Control (SKU JA-PLE-6449) is a gas chromatograph in which the gas pressures and flows are set electronically, for laboratories that need fine, repeatable gas settings. This GC with electronic pressure control lets the user set pressure or flow on the panel and read the actual value on a digital display, with pressure and flow controls configurable for both channels. It is supplied by JaincoLab.
Specifications
Pressure or flow is set on the front panel and the actual value appears on a digital display; the standard pressure range is 0 to 60 psi and the standard flow range 0 to 100 ml/min of nitrogen, a mix of pressure and flow controls can be fitted to both channels, and pressure programming is available as an option.
| Product | Gas Chromatography With Electronic Pressure & Flow Control |
| SKU | JA-PLE-6449 |
| Gas control | Electronic pressure and flow controls, set on the panel |
| Display | Digital display of the actual value |
| Standard pressure range | 0 to 60 psi |
| Pressure calibration | kPa or kg/cm² on request |
| Standard flow range | 0 to 100 ml/min nitrogen; other ranges and gases to the user's specification |
| Channels | Pressure and flow controls configurable for both channels |
| Pressure programming | Optional; hold times and pressure ramp rates in psi/min |
Applications of the GC with electronic pressure control
Electronic pressure and flow control is chosen where gas settings must be repeated exactly between runs and between analysts, and the optional pressure programming, built from hold times and ramp rates, is offered for faster analysis and higher resolution on suitable separations.
- Methods that need the same carrier and detector gas settings run after run
- Pressure-programmed separations for faster analysis or higher resolution
- Laboratories that record gas settings as part of each method
- Instrumental analysis in pharmaceutical, chemical and research laboratories
Scope of supply and ordering
The listing covers the gas chromatograph with electronic pressure and flow controls configured for the application agreed on the quotation, including the pressure units, the flow range and gas for each channel and whether pressure programming is added. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the configuration and the delivery destination. JaincoLab supplies single systems to pharmaceutical analysis, testing and research laboratories and handles institutional and tender orders, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What are the standard pressure and flow ranges?
The standard pressure range is 0 to 60 psi and the standard flow range is 0 to 100 ml/min of nitrogen; other flow ranges and gases can be specified.
Can the pressure be shown in other units?
Yes. Calibration in kPa or kg/cm² can be provided on request.
Is pressure programming available?
Yes, as an option. A pressure profile is built from hold times and pressure ramp rates set in psi/min.
