Gas Chromatograph
Product Code : JA-ELA-5332

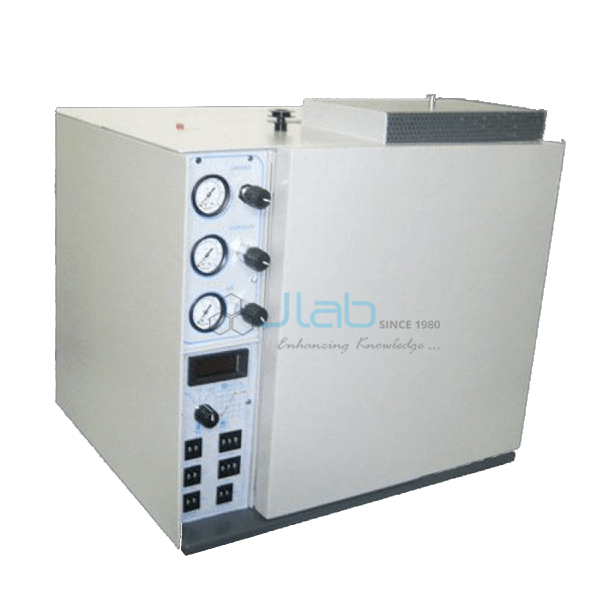

The Gas Chromatograph (SKU JA-ELA-5332) is a modular laboratory instrument supplied by JaincoLab for separating and analysing volatile compounds. It has a 12 litre column oven programmable from ambient to 400 °C, a stainless steel injector on a universal heated base for packed and capillary columns, a dual flame ionisation detector and a programmable head-space unit for 12 vials. It suits university chemistry, pharmacy and research laboratories that teach chromatographic analysis.
Specifications
The Gas Chromatograph has a 12 litre column oven from ambient to 400 °C, four temperature ramps, dual vertical-port injectors (up to 3), a dual flame ionisation detector and a 230 V, 50 Hz, 2 kVA supply.
| Product | Gas Chromatograph |
| SKU | JA-ELA-5332 |
| Column oven temperature | Ambient to 400 °C in 1 °C steps |
| Column oven size | 12 litres |
| Temperature programme | Four ramps with five isothermal holds; 0 to 25 °C/min in 0.1 °C steps |
| Cooling | Automatic cooling system |
| Injector | Stainless steel body on a universal heated base; removable glass insert |
| Injector type | Dual vertical port for fused silica capillary and packed columns; split/splitless and packed |
| Injector temperature | Ambient to 390 °C in 1 °C steps, set by thumbwheel switches |
| Number of injectors | Up to 3 (2 standard) |
| Pressure control | Electronic |
| Detector | Dual flame ionisation detector (FID) with control module; quartz jet |
| FID module | Dual differential amplifier; simultaneous operation of all FIDs |
| Output attenuator | 12 binary steps |
| Head space | Programmable, 12 vials |
| System | Modular: separate microprocessor, FID and interface modules |
| Power | 230 V, 50 Hz, 2 kVA |
| Weight | 40 kg |
Applications of the gas chromatograph with FID
A gas chromatograph with flame ionisation detection separates the components of a volatile sample in a heated column and measures each one as it leaves, which is the basis of purity testing, residual solvent checks and practical teaching of chromatographic analysis.
- Instrumental analysis practicals in M.Sc. and B.Sc. chemistry
- Pharmaceutical analysis teaching, including residual solvents by head space
- Separation of volatile organic mixtures in research laboratories
- Training in temperature-programmed chromatography
Scope of supply and ordering
The listing covers the modular gas chromatograph with column oven, injector system, dual FID module and programmable head-space unit. Columns, gas supplies, data software and installation are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the configuration ordered and the delivery destination. Instruments for university and research laboratories are supplied.
Frequently asked questions
What is the column oven range?
Ambient to 400 °C in 1 °C steps, with a 12 litre oven and four temperature ramps.
Which detector is fitted?
A dual flame ionisation detector (FID) with a control module and quartz jet.
Does it accept capillary columns?
Yes. The dual vertical-port injector takes fused silica capillary columns and packed columns.
What power supply does it need?
230 V, 50 Hz, 2 kVA.
Related products
This instrument is listed in the JaincoLab educational laboratory apparatus range.
Request a quote
To order the Gas Chromatograph, send the configuration and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-ELA-5332. For tender or project supply, see our tenders page.
