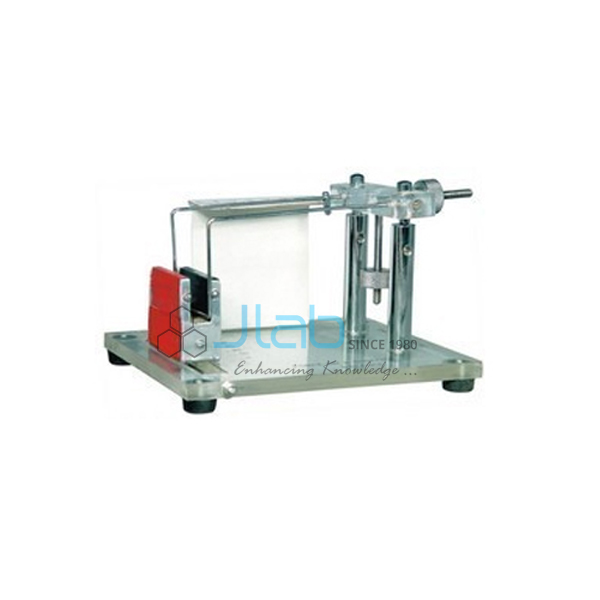

Force on A Conductor Balance
Product Code : JA-PLE-4143
The Force on A Conductor Balance (SKU JA-PLE-4143) is a current balance showing that a conductor carrying a current in a magnetic field is subjected to a force of attraction or repulsion, depending on the direction of the current. This current balance for force on a conductor lets students rebalance the beam with a 1 g rider on a 0–75 mm scale, and JaincoLab supplies it for senior-school and college electromagnetism practicals.
Specifications
The balance has a 160 x 140 mm plastic base with two contact pillars, a beam supported on two bearings that form the fulcrum, screwed masses for sensitivity and zero adjustment, a scale marked 0 to 75 mm in 1 mm divisions and a 1 g rider.
| Product | Force on A Conductor Balance |
| SKU | JA-PLE-4143 |
| Base | Plastic, 160 x 140 mm |
| Pillars | Two contact pillars, each with an external circuit connection |
| Beam support | Two bearings forming the fulcrum |
| Sensitivity adjustment | Screwed mass moving vertically |
| Zero adjustment | Screwed mass moving horizontally, to set equilibrium with no current |
| Scale | 0 to 75 mm in 1 mm divisions |
| Rider | 1 g |
Applications of the current balance for force on a conductor
With the beam balanced and no current flowing, a current is passed through the conductor placed in a magnetic field and the resulting force tips the beam; moving the 1 g rider along the scale restores balance, so the force can be compared for different currents and directions.
- Demonstrating the force on a current-carrying conductor in a magnetic field
- Showing that reversing the current reverses the direction of the force
- Comparing the force for different currents by rebalancing with the 1 g rider
- Supporting lessons on the motor effect and Fleming’s left-hand rule
Scope of supply and ordering
The listing covers the balance with its plastic base, contact pillars, beam with adjusting masses, scale and 1 g rider. The magnetic field source and power supply are not listed with this item; accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. JaincoLab supplies senior schools, colleges and education projects, including export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the balance demonstrate?
It demonstrates that a current-carrying conductor in a magnetic field is subjected to a force of attraction or repulsion that depends on the direction of the current.
How is the balance adjusted?
One screwed mass moves vertically to set the sensitivity and another moves horizontally to set equilibrium when no current flows.
What scale and rider are provided?
A scale marked 0 to 75 mm in 1 mm divisions and a 1 g rider.
