Force on a Conductor Apparatus
Product Code : JA-EE-7637

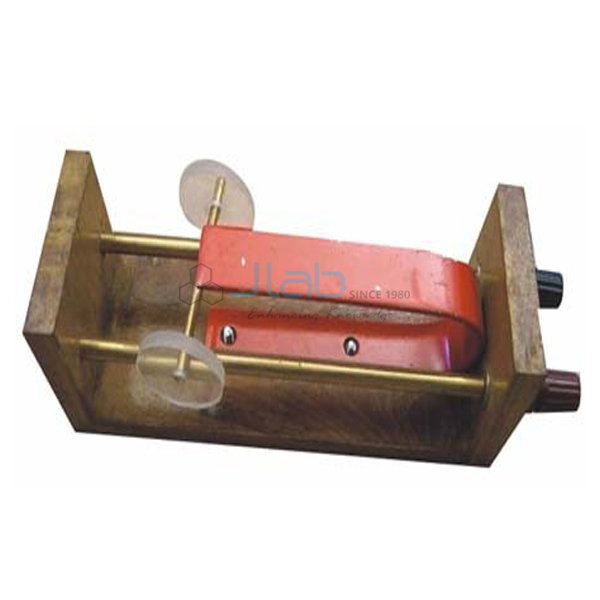

The Force on a Conductor Apparatus (product code JA-EE-7637) demonstrates the motor effect, the force on a current-carrying conductor in a magnetic field. The force on a conductor apparatus has a pair of brass rails with 4 mm socket terminals set between the poles of a U-shaped magnet, and a brass axle with plastic discs that rests across the rails. When current flows through the axle it rolls along the rails, and its direction follows Fleming's left-hand rule.
Specifications
The apparatus consists of a U-shaped magnet, two brass rails with 4 mm socket terminals and a brass axle fitted with plastic discs. The axle completes the electrical contact between the rails and is free to roll.
| Product | Force on a Conductor Apparatus |
| SKU / Product code | JA-EE-7637 |
| Magnet | U-shaped |
| Rails | Pair of brass rails with 4 mm socket terminals |
| Moving conductor | Brass axle with plastic discs, free to roll along the rails |
Applications of the force on a conductor apparatus
The apparatus lets students see the motor effect directly and test how the direction of motion depends on the current and the field.
- Demonstrating the motor effect in secondary school physics
- Verifying Fleming's left-hand rule by reversing current or magnet
- Relating the force to the current supplied
- Introducing the principle of the electric motor
Scope of supply and ordering
The listing covers one force on a conductor apparatus. Power supplies, leads, accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the number of units and destination. JaincoLab supplies single schools, bulk orders for school networks and colleges, and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the apparatus demonstrate?
The force on a current-carrying conductor in a magnetic field, known as the motor effect.
What power supply is needed?
A low-voltage, high-current supply such as the Electromagnetic Power Supply listed in the same category.
How are leads connected?
Through the 4 mm socket terminals on the brass rails.
