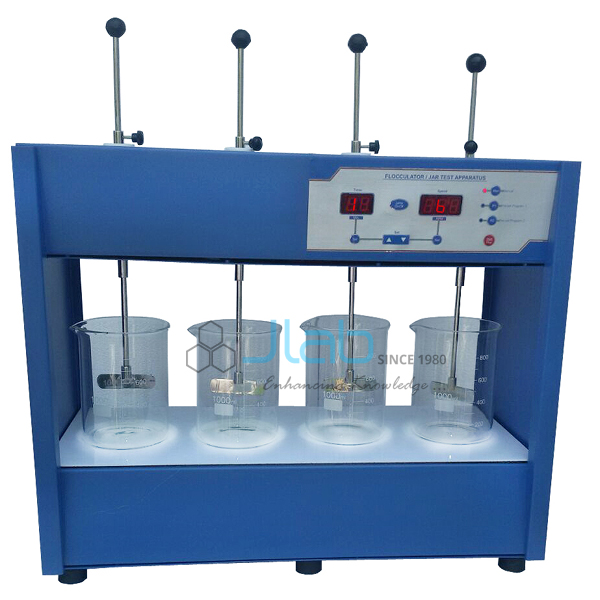

Flocculator Jar Test Apparatus
Product Code : JA-FJTA-2225
The Flocculator Jar Test Apparatus (SKU JA-FJTA-2225) runs flocculation (jar) tests on water and effluent samples in 2, 4 or 6 jar versions. Stainless steel paddles turn at a speed shown on a digital display, a countdown timer stops them and sounds an alert, and the timer then counts up to measure settling time. This flocculator jar test apparatus is supplied by JaincoLab.
Specifications
The paddles run from 25 to 200 rpm per the specification table, the timer counts down from 1 to 99 minutes, two preset programs store routine speed and time settings, and the unit draws 100 W on 230 V, 50 Hz.
| Product | Flocculator Jar Test Apparatus |
| SKU | JA-FJTA-2225 |
| Number of jars | 2, 4 or 6, by version |
| Speed range | 25 to 200 rpm |
| Paddles | Stainless steel |
| Timer | 1 to 99 minutes countdown, then count-up for settling time |
| Pre-set programs | 2, stored in memory |
| Controls | Flat touch-sensitive keypad |
| Display | Digital LED (speed and time) |
| Illumination | Built in, for viewing samples |
| Power | 230 V, 50 Hz, 100 W |
Applications of the flocculator jar test apparatus
Jar tests compare coagulant and flocculant doses side by side under the same mixing and settling conditions, which is how treatment plants and laboratories choose a chemical dose.
- Coagulant and flocculant dose trials for water treatment plants
- Effluent treatability studies
- Environmental engineering and water chemistry practicals in colleges
- Settling time studies on water and wastewater samples
Scope of supply and ordering
The listing covers the flocculator in the 2, 4 or 6 jar version chosen; jars and paddles supplied with it are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the jar version, number of units and the delivery destination. JaincoLab supplies single units and sets for water laboratories, colleges and tender orders.
Frequently asked questions
How many jars can it run?
Versions for 2, 4 and 6 jars are listed.
What speed range do the paddles cover?
25 to 200 rpm, shown on the digital display.
How does the timer work?
It counts down from up to 99 minutes, stops the paddles with an alert, then counts up to time settling.
Related products
Jar test units are grouped in the JaincoLab jar test apparatus range.
Request a quote
To order the Flocculator Jar Test Apparatus, send the number of jars, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-FJTA-2225. Tender and project enquiries can be sent through the tenders page.
