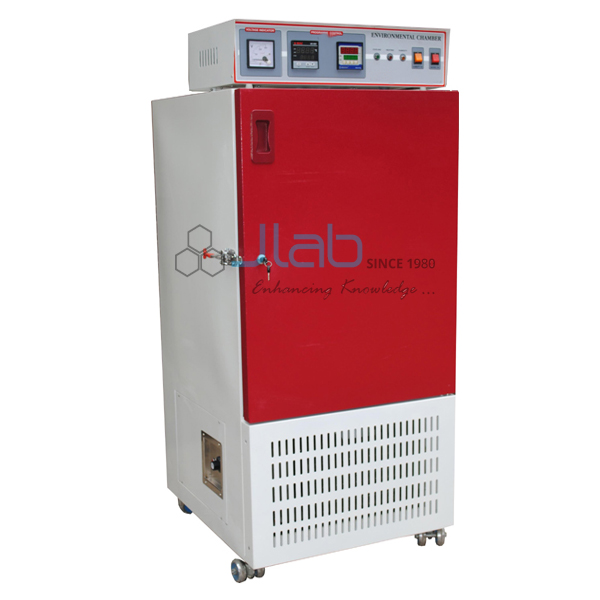

Environmental Chamber
Product Code : JA-EGC-3895
The Environmental Chamber (SKU JA-EGC-3895) is a cooled stability chamber for quality-control tests that need controlled temperature and humidity, such as storage and shelf-life trials. This cooled humidity chamber uses a refrigeration system and a steam generation tank to hold 10 to 60 °C within ±1 °C and 40 to 95% RH within ±3% RH, with a fan circulating air evenly through a stainless steel 304 inner chamber. JaincoLab manufactures it for pharmaceutical, food, biotechnology and research laboratories.
Specifications
The chamber controls temperature from 10 to 60 °C (±1 °C) and humidity from 40 to 95% RH (±3% RH, 5% above ambient) at cool temperature, with a stainless steel 304 inner chamber, painted mild steel outer body on castors and PUF insulation.
| Product | Environmental Chamber |
| SKU | JA-EGC-3895 |
| Temperature range | 10 °C to 60 °C, ±1 °C |
| Humidity range | 40% to 95% RH, ±3% RH (5% above ambient) at cool temperature |
| Cooling | Refrigeration system |
| Humidification | Steam generation tank at base or top |
| Air circulation | Self-cooled air circulation fan |
| Inner chamber | Stainless steel, SS 304 grade |
| Outer body | Mild steel sheet, painted, on castor wheels |
| Insulation | Polyurethane foam (PUF) |
| Door | Double-walled front door with lock and key, magnetic gasket |
| Shelves | Adjustable |
Applications of the cooled humidity chamber
Holding samples at a set temperature and humidity for weeks or months shows how products change under defined storage conditions.
- Stability and shelf-life testing of pharmaceutical formulations
- Quality-control storage trials for food and packaging
- Plant, seed and insect studies at controlled temperature and humidity
- Research and teaching in pharmacy, biotechnology and agriculture colleges
Scope of supply
The listing covers the environmental chamber with refrigeration, steam humidifier, circulation fan, stainless steel inner chamber, adjustable shelves and lockable door on castors. Chamber capacity, number of shelves and controller type are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the chamber capacity and number of units and the delivery destination. Single chambers and bulk institutional and tender quantities are supplied.
Frequently asked questions
What temperature and humidity ranges does it cover?
10 to 60 °C within ±1 °C, and 40 to 95% RH within ±3% RH at cool temperature.
How is humidity produced?
By a steam generation tank at the base or top of the chamber.
What is the inner chamber made of?
Stainless steel, SS 304 grade, with PUF insulation between the inner and outer walls.
What should a quotation request include?
Send the SKU JA-EGC-3895, the chamber capacity, quantity and delivery destination.
Related products
This model is listed in the JaincoLab environmental growth chambers range.
Request a quote
To order the Environmental Chamber, send the chamber capacity, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-EGC-3895.
