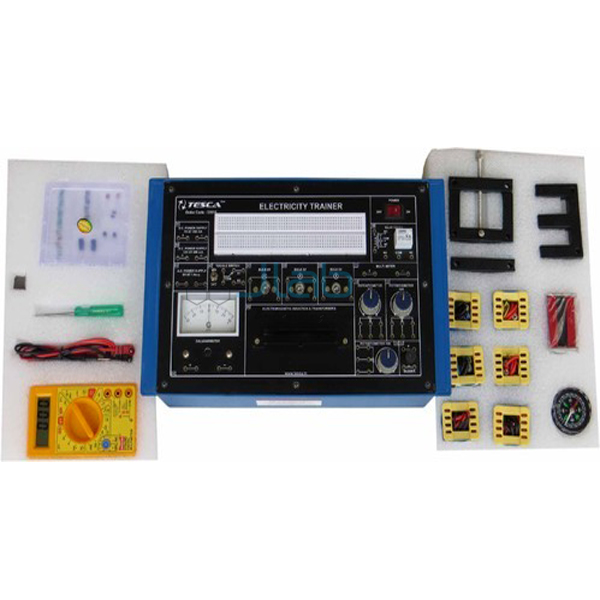

Electricity Trainer
Product Code : JA-BT-1480
The electricity trainer is a bench panel for basic electricity and magnetism experiments: resistances singly and in series and parallel, the Oersted experiment, mutual induction, step-down and step-up transformers built from the given coils and cores, and conversion of a galvanometer into a voltmeter and an ammeter. It has 5 V and 12 V DC supplies, a 6 V AC supply, a 12 V relay and a 30-0-30 galvanometer (SKU JA-BT-1480).
Specifications
Listed specifications and features:
| Product | Electricity Trainer |
| SKU | JA-BT-1480 |
| DC supplies | 5 V, 200 mA; 12 V, 200 mA |
| AC supply | 6 V, 1 A |
| Relay | 12 V |
| Galvanometer | 30-0-30, 80 ohm |
| Light bulbs | 3 nos., 6 V |
| Potentiometers | 3 nos. (values listed: 25 ohm 1 W and 10 kilohm 1 W) |
Experiments on the electricity trainer
The listed experiments are:
- Resistances individually and in series and parallel connection
- Voltage and current flow
- Oersted experiment
- Mutual induction
- Step-down transformer built from the given coils and cores
- Step-up transformer, and the effect of moving the I core
- Conversion of a galvanometer into a voltmeter and into an ammeter
Scope of supply and ordering
The listing covers the electricity trainer with its coils, cores, bulbs and galvanometer as listed, supplied by JaincoLab. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
Which transformer experiments are possible?
Step-down and step-up transformers built from the supplied coils and cores, including the effect of moving the I core on a step-up transformer.
What galvanometer is fitted?
A 30-0-30 galvanometer with a resistance of 80 ohm, used in the voltmeter and ammeter conversion experiments.
Which supplies are built in?
5 V and 12 V DC at 200 mA each and a 6 V, 1 A AC supply.
