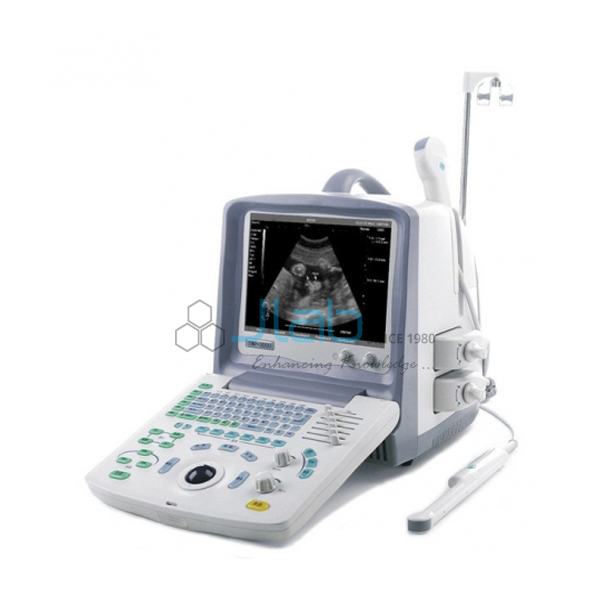

Digital Ultrasound Diagnostic Device
Product Code : JA-USM-4016
Digital Ultrasound Diagnostic Device
|
Power Supply |
230 AC/50 Hz or 110V AC/60 Hz |
|
Continuous Operating Time |
> 8 Hours |
|
Transducer |
Multi frequency Convex Array |
|
Frequency |
Standard 2.5/3.5/5.0 Mhz |
|
Display Mode |
4B,B, B/B, B/M, M |
|
Grey Scale |
256 |
|
Frame Rate |
60 Frames/Second |
|
Digital Scan Converter |
576 x 460x8 bit |
|
Zoom |
11 levels partial zoom |
|
Body Marks |
38 type indicating probe position |
|
General Measurements |
Distance |
|
Software Measurements |
GS, CRL, BPO, HC, AC, FL and EDD by LMP Uterus, left/right ovary, endosmetriumn measurement of left/right ventricle, mitral and pulmonary valve |
|
Resolution |
Lateral (Horizontal) Depth <= 2 mm |
|
Maximum Measurement Depth |
> 190 mm |
|
Display Screen |
10 inch SVGA |
|
Video Output |
PAL |
|
Dimensions |
365 (H )X 292 (W)X 380 (D) mm |
|
Weight |
10 kg approx |
|
Operating Temperature |
5 to 40 degree centigrade |
|
Operating Humidity |
< 80 % |
|
External Interface(Optional) |
Foot switch |
